Double End Chamfering Machine

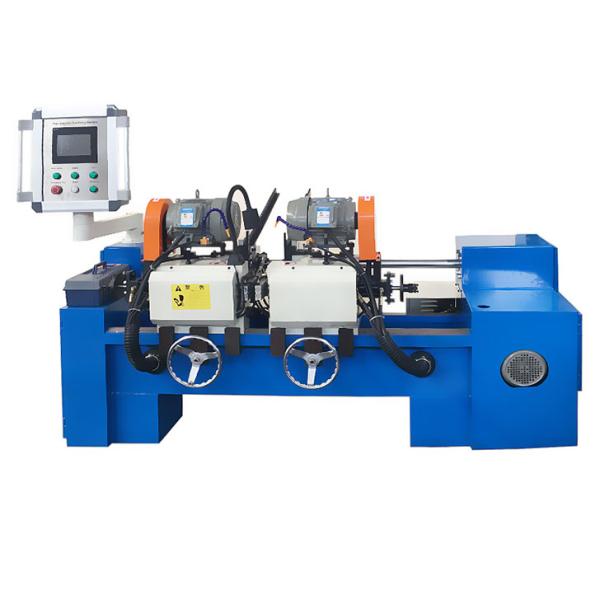

CJ-80 Tube End Chamfering Machine

Double End Chamfering Machine
Get Quote

Chamfering Capacity up to OD 80mm, with 600mm Working Lengths
Introducing the CJ-80, designed for long lengths and OD 80mm chamfering capabilities. These machines enable simultaneous chamfering at both ends of a tube, accommodating working lengths of up to 600mm. When equipped with the optional BTM (Bundle Loading Magazine), our machines provide a fully automated loading, feeding, and chamfering process. This product line ensures a precise and uniform chamfer on both ends of the tube, including chamfering the inside + outside (I/O) and the face of the material, or creating a rounded chamfer. Additionally, it is suitable for external chamfering of solid bars.

Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"

Parameters

Model

CJ-80

Type

Pneumatic/Hydraulic Drive

Pipe Diameter

8-80mm

Work Length

100-600mm(custom)

Work accuracy

±0.1mm

Work Speed

3-5s/pcs

Machine Motor

1.5kw

Work Pressure

MPA 6-8KG

Weight

1000KG

Dimension

200*110*150cm

Suit Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Related Products

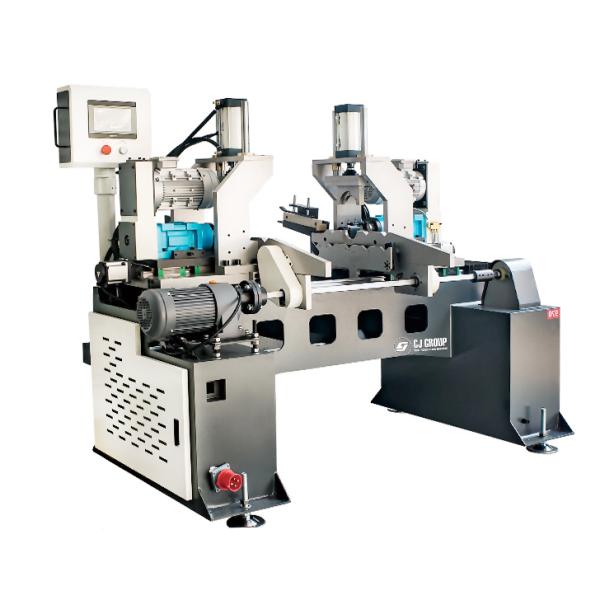

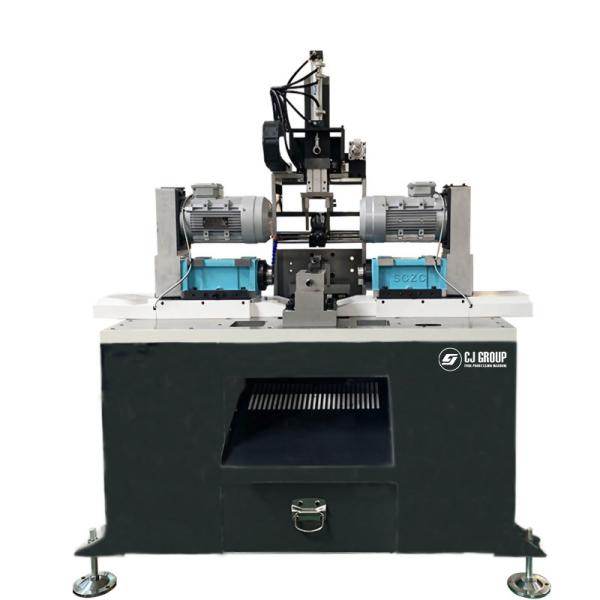

CNC Chamfering Machine
