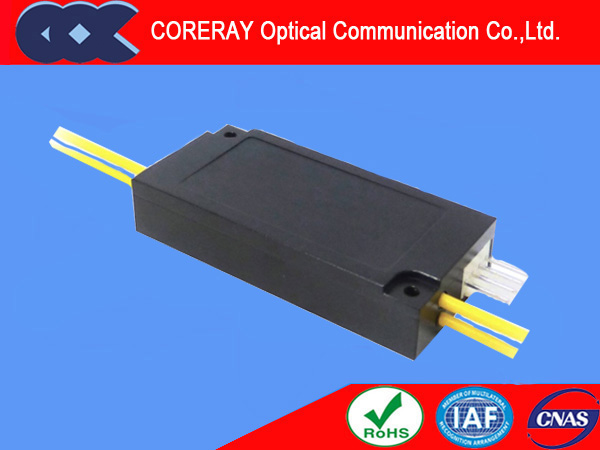

D2X2B OPTICAL SWITCH, China D2X2B OPTICAL SWITCH Supplier

D2X2B OPTICAL SWITCH - 1501

D2X2B OPTICAL SWITCH For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale D2X2B OPTICAL SWITCH, Made in China, High Quality Products!, China D2X2B OPTICAL SWITCH, D2X2B FIBER OPTICAL SWITCH Supplier, Manufacturer.

We Provide:
D2X2B FIBER OPTICAL SWITCH, D2X2B MECHANICAL OPTICAL SWITCH,
D2X2B MEMS OPTICAL SWITCH, D2X2B SM MM OPTICAL SWITCH
D2X2B MINI OPTICAL SWITCH, D2X2B MAGNETO-OPTICAL SWITCH

Optical Switch D2X2B Features

Low Insertion Loss
Wide Wavelength Range
Low Crosstalk
High Stability, High Reliability
Epoxy-free on Optical Path
Latching and Non-latching

Optical Switch D2X2B Applications

Optical Signal Switching and Routing
Optical Network Protection and Restoration
Optical Network Monitoring
Video Distribution
Instrumentation Resource Sharing
Military Communications

Parameters OSW-D2x2B
Wavelength Range nm 650～1310 1260～1670
Testing Wavelength nm 650/780/850/980/1064/1310 1310/1490/1550/1625/1650
Insertion Loss dB Typ:0.6,Max:1.0 Typ:0.5 ,Max:0.8
Return Loss dB ≥30 ≥50
Crosstalk dB ≥35 ≥50
PDL dB ≤0.05
WDL dB ≤0.25
TDL dB ≤0.25
Repeatability dB ≤±0.02
Power supply v 3.0 or 5.0
Lifetime Cycle ≥107
Switch Time ms ≤8
Transmission Power mW ≤500
Operation Temperature ℃ -40～+85
Storage Temperature ℃ -40～+85
Weight g 16
Dimension mm (L)27×(W)12.5×(H)8.2(±0.2)

Route states

Pins

Optical Path Electric Drive Sensor Status
D2X2B 1 5 6 10 3-4,7-8 2-3,8-9
Latching P1-P3 P1’’-P3’’ N/A N/A GND +5V OPEN CLOSE
P1-P4 P1’’-P4’’
P2-P3 P2’’-P3’’ +5V GND N/A N/A CLOSE OPEN
Non-Latching P1-P3 P1’’-P3’’ N/A N/A N/A N/A OPEN CLOSE
P1-P4 P1’’-P4’’
P2-P3 P2’’-P3’’ +5V N/A N/A GND CLOSE OPEN

Electrical parameters

Voltage Current Resistor
5V Latching 4.5~5.5 36~44mA 125?
5V Non-Latching 4.5~5.5 26~32mA 175?
3V Latching 2.7~3.3 54~66mA 50?
3V Non-Latching 2.7~3.3 39~47mA 70?
