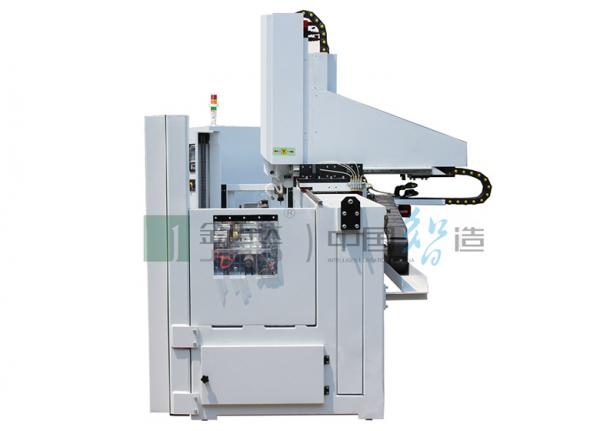

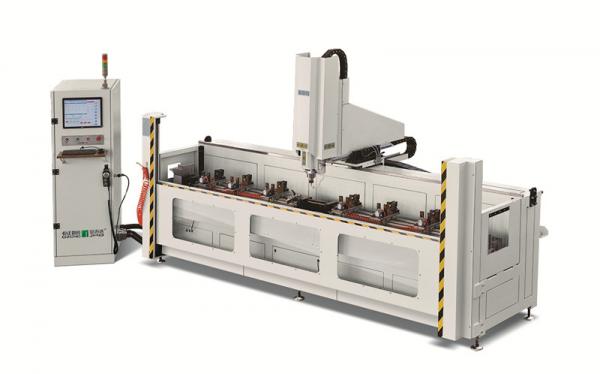

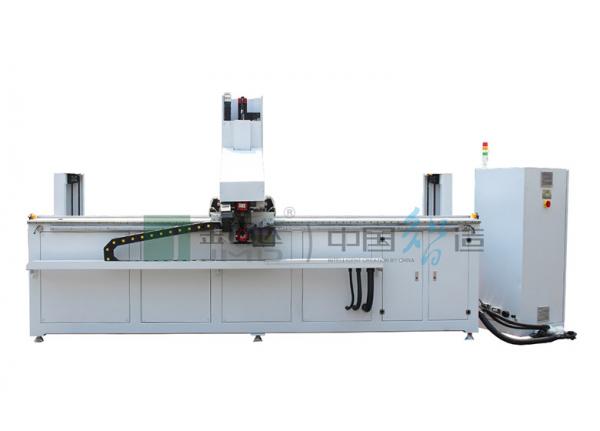

CNC Milling and Drilling Machine (Rotary worktable)
LJZXS-3200
1.HAN*S CNC system with friendly human-computer interface, easy to operate
2.Suitable for processing aluminum, wood, copper and UPVC profiles
3.Worktable rotates at +/- 90 °, processing three sides of the profile in the same working cycle
4.Suitable for processing key holes and slots with high efficiency and precision.
5.Equipped with high-precision linear guide rail pair, ball screws, rack, pinion and servo motor , ensures the stable running
6.High-speed spindle, runs stably with low noise
X/Y/Z axis stroke | 3200mm/300mm/200mm | Power supply | 380V,3Phase,50Hz |
X axis feeding speed | 0~60m/min | Spindle power | 3.0kW |
Y axis feeding speed | 0~25m/min | Spindle rotating speed | 0~24000rpm |
Z axis feeding speed | 0~25m/min | Total Power | 6.0kW |
Machined surface roughness | Ra 6.3 um | Working air pressure | 0.6~0.8MPa |
Repeat positioning accuracy | ±0.02mm | Overall dimensions | 4400*1420*1750mm |
Z axis positioning accuracy | ±0.05mm | Weight | 1200Kg |
Related Products
Single-head Copy Router for Aluminum Profile (Patent)
LJAXF1-270*115
45 Degree CNC Cutting Center for Aluminum Doors and Windows
LJG2S-500*6500

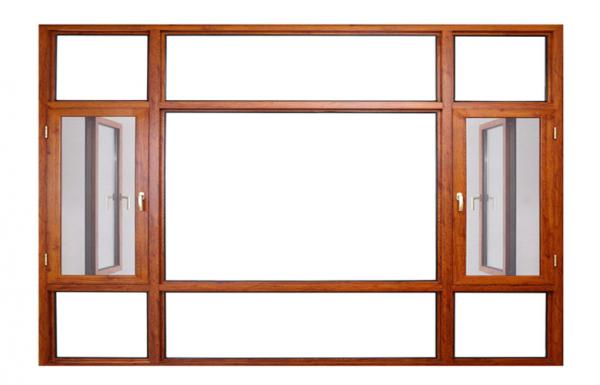

In-swing Window, Aluminum Clad Wood Windows
