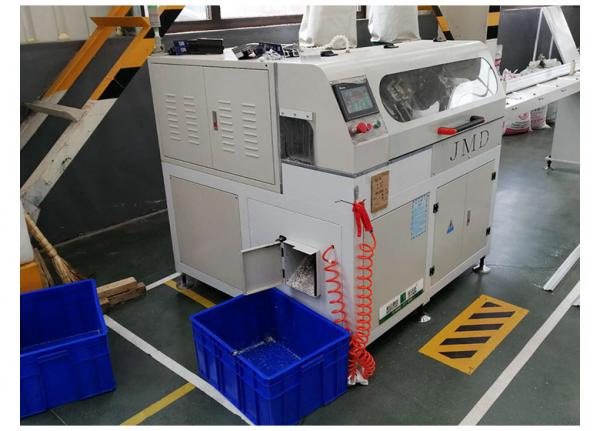

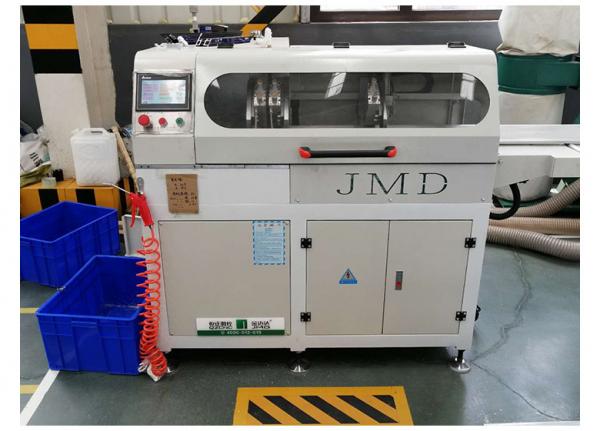

CNC Corner Connector Cutting Saw for Aluminum Doors and Windows

LJJMS-450(500)*500

1.This machine is mainly used for cutting aluminum corner profiles of broken bridge doors and windows, and can also be used for 90 °cutting of some industrial aluminum profiles.
2.Broken bridge aluminum doors and windows enterprises must have a new type of CNC cutting equipment.
3.The machine has the advantages of simple operation, reliable performance, advanced technology, and easy maintenance and maintenance.
4.This machine is mainly used for cutting aluminum alloy doors and windows, curtain walls and some industrial aluminum profiles, with the characteristics of fast cutting speed, high machining precision, high production efficiency and so on.

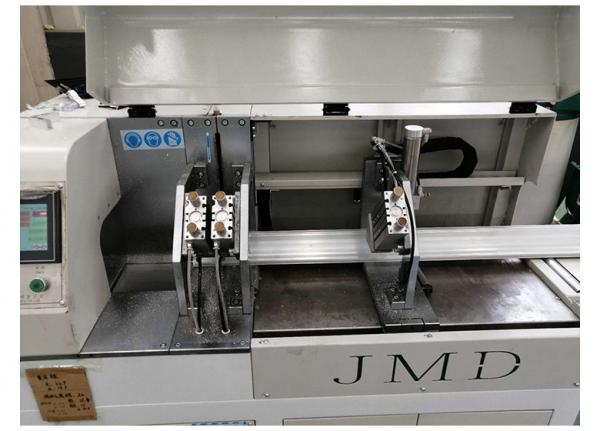

5.The profile feeding and saw blade cutting of the equipment are powered by a servo system, and the feeding and cutting run smoothly, which avoids the disadvantage of the traditional cylinder affected by the air source.

Power source	three-phase four-wire 380V 50Hz
Sawing motor	3kW.
Saw blade speed	2860r/min
Working pressure	0.5~0.8MPa
Gas consumption	max 40L/min
Sawing length	max 500mm. Min 3mm
Sawing angle	90 °
Lead-in speed	0~5m/min
Feed speed	0~40m/min
Specification of saw blade	Φ 450 × 3 × 2.6 × 30 × 96
Weight	750Kg
Total power rate	6.7kW (mainframe 3kW + feed servo 0.75kW + process servo 0.75kW + vacuum motor 2.2kW)
Cutting width	Φ 500 saw blade 150mm. Φ 450 saw blade 125mm (standard). Φ 400 saw blade (without steps) 100mm
External dimension	1607 × 1310 × 1160 (mainframe) (length × width × height)
