CNC Chamfering Machine

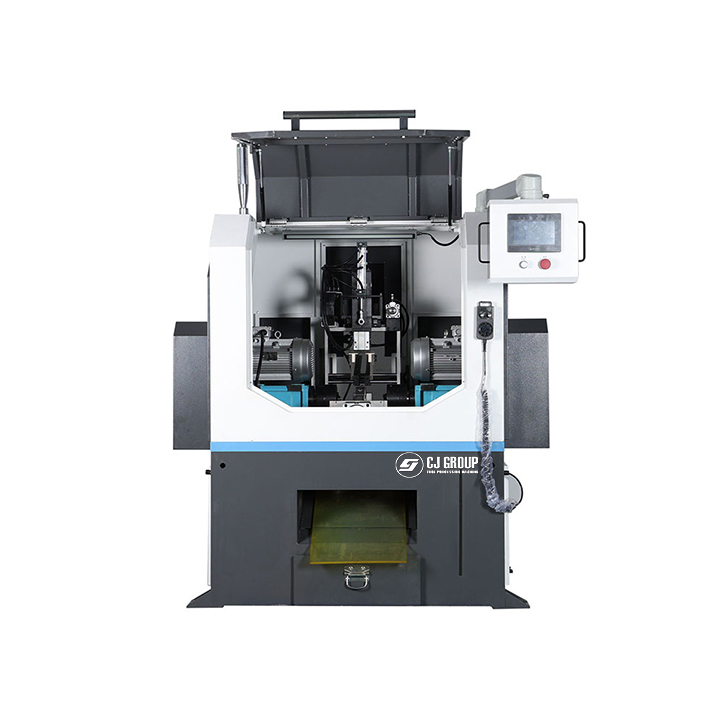

CJ-60CNC Short Tube Chamfering Machine
The CJ-60CNC Chamfering Machine: A High-Precision Solution for Short Length Tube Chamfering
The CJ-60 chamfering machine stands out in the industry for its precision in chamfering tubes with short working lengths ranging from 16 mm to 130 mm and an outer diameter (OD) of 60mm. This machine is especially designed for businesses requiring high-efficiency and accuracy in tube processing.
Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"
Parameters
Model | CJ-60CNC | CJ-90CNC |
Pipe Diameter | 10-60mm | 20-90mm |
Work Length | 15-200mm/150-300mm(custom) | |
Work accuracy | ±0.05mm | |
Verticality | 0.1mm | |
Concentricity | 0.1mm | |
Work Speed | 3-6s/pc | |
Machine Motor | 4.4kw | 6kw |
Work Pressure | MPA 6-8KG | |
Weight | 1000kg | 1100kg |
Dimension | 1800*1000*1870mm | |
Material | Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc | |
Shape Available | Round, Square, Hex, Bent Shape etc | |
Workpiece Available | Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc | |
Related Products

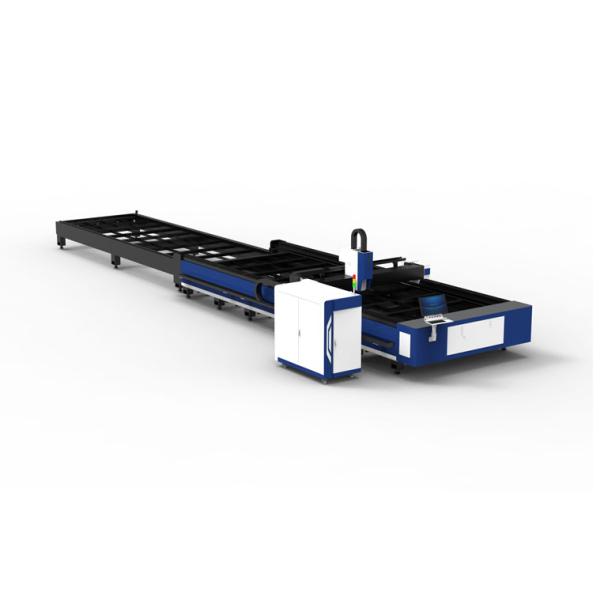

Fiber Laser Tube Cutting Machine
CJ-1500 Laser Tube Cutter
Tube Tapering Forming Machine
CJ-80 Pipe Tapering Machine
CNC Chamfering Machine
CJ-60CNC Short Tube Chamfering Machine
Tube Straightening And Cutting Machine
CJ-20 Wire Straightening And Cutting Machine

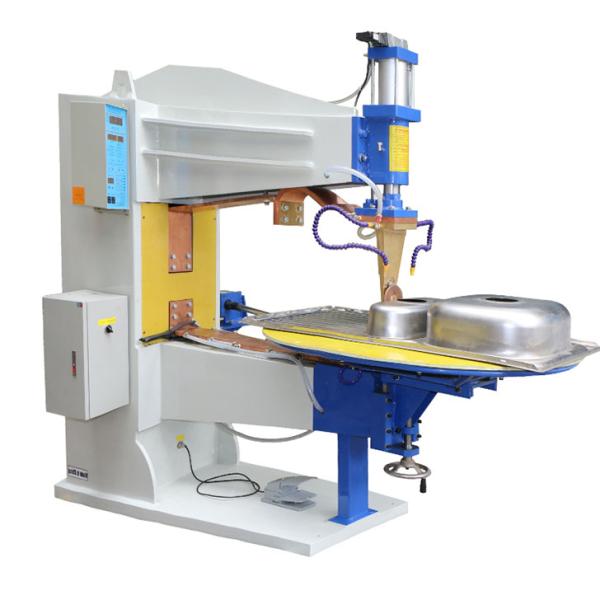

AC Rolling Seam Welding Machine
