Window & Door Machine

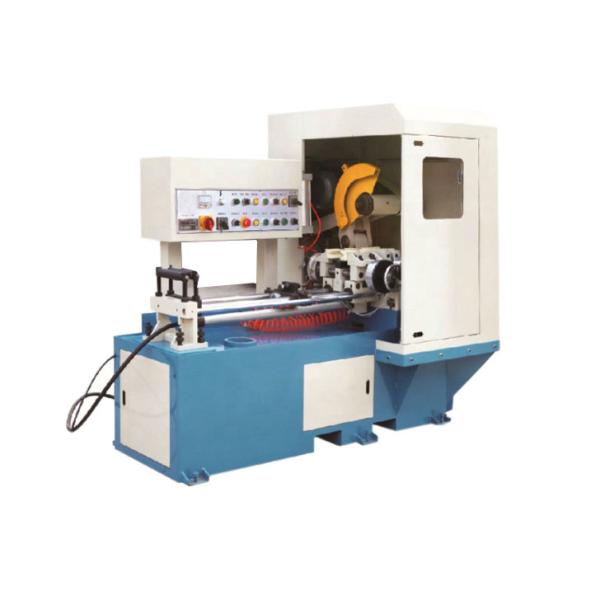

CJ-450 CNC cutting saw with wireless measurement, precision cutting technology for 90° aluminum alloy glass pressure profiles, suitable for large-scale continuous production.
Features
1. Uses Bluetooth transmission, highly accurate readings, no need for secondary modifications.
2.Equipped with a tool detection system to enhance service life.
3. Comes with a wireless handheld transmission system and automatic material reduction feature.
4. Features a robotic arm for automatic support, saving labor and improving efficiency.
5.High power and strong load capacity, providing assurance for later use."

Power supply: 380V 50HZ

Input power: 1.5KW

Working pressure: 0.6～0.8MPa

Air consumption: 15L/min

Motor speed: 2800r/min

Sawing length: 200mm-2500mm

Cutting width: 70mm

Cutting height: 80mm

Saw blade specifications: ø400 × ø30 ×30× Z100

Cutting accuracy: ±1mm

Cutting angle error: ±5′

Overall dimensions: 8500*1200*1100

Weight: 400kg
