CNC Aluminium Double Head Mitre Saw

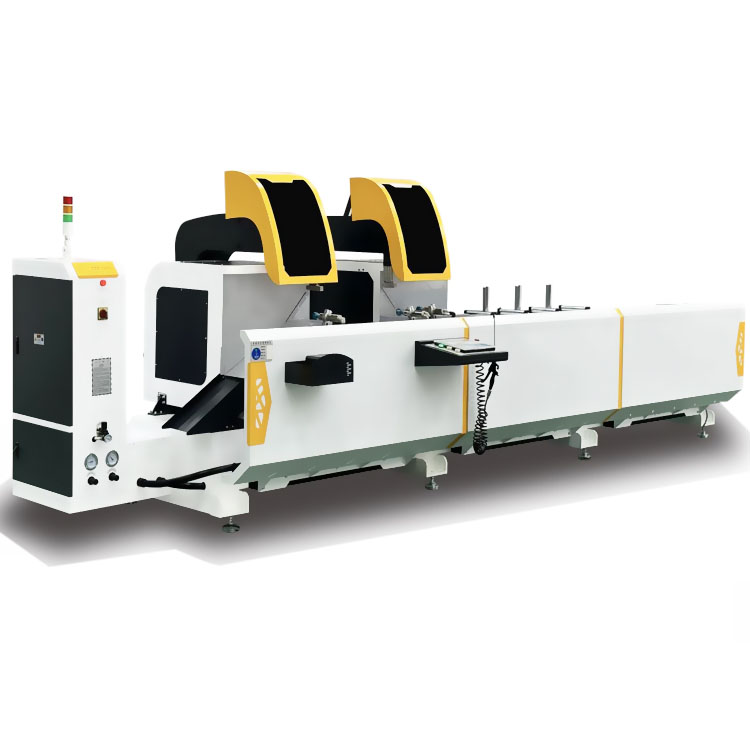

CNC-500*5000 DoubleHead Miter Saws
CNC-500*5000 double head miter saw is a smart system for windows and doors, supporting ERP and MES software for integrated production and sales, enhancing efficiency. Features include: innovative appearance, unique mechanical structure for stable cutting; simple operation addressing hiring challenges with label printing and error prevention; high precision, integrated cast worktable, and various data import methods; eco-friendly, efficient chip and dust removal design; patented rotating lifting material rack reducing cutting errors; equipped with the latest arc cutting technology for safe and fast operation.
Power supply: 380V 50HZ
Total power: 6.75KW
Saw head motor: 2× 3KW/3400r/min
Servo motor: 750W
Working pressure: 0.6～0.8MPa
Gas consumption: 20L/min
Sawing length: Max5000mm min 280mm (minimum 200mm for short material cutting function)
Sawing width: max 150mm
Maximum cutting surface: 45°150×175mm 90°150×280mm
Maximum square tube cutting: 150×200mm
Sawing angle: 45°-90°
Feed speed: stepless speed adjustment 0-4m/min
Saw blade specifications: ø500 × ø30 × 4.4× Z120
Overall dimensions: 6800×1500×1800 mm
Weight: 2100kg
Repeated length accuracy: ≤ 0.05mm
Profile cutting angle tolerance: ± 3’
Cutting surface flatness: ≤ 0.02m
Cutting surface roughness: Ra12.5μm
