Class External Fi-Fi System, China Class External Fi-Fi System Supplier

Class External Fi-Fi System - DY040101

Class External Fi-Fi System For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Class External Fi-Fi System, Made in China, High Quality Products!, China FIFI System, Marine FIFI System Supplier, Manufacturer.

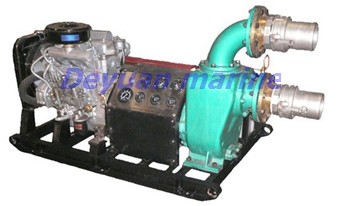

Driven by:Diesel engine. The fire pump and engine will be installed on a common base.
Consisting of:
1) Fire Pump:2 sets
Type: Horizontal, single stage, centrifugal pump
Duty Specified

Capacity: 600 m3/h

Total Head: 130 m L.C.

Speed: 2100 rpm
Power absorbed : 273.6 kW (Seawater)

Efficiency: 80%

Discharge : Top, DN200 PN 25

Suction: End, DN250 PN 16

Direction of rotation: CW (viewing from driver end)
Materials of Construction

Casing: Nodular cast iron

Impeller: Bronze

Shaft : Stainless steel AISI 316

Packing: Soft packed

2）Diesel Engine:2 sets

Engine Model:TBD234V8, China

Type:4 Cycle, 8 Cylinder, electrical start, 24VDC
Rating Type:Heavy Duty
Rated Engine Power:323kw @ 2100 rpm
Direction of rotation:CCW (viewing from driver end)

3） High Flexible Coupling
Mounted between PTO of diesel engine and pump
Final model to be selected by maker.
