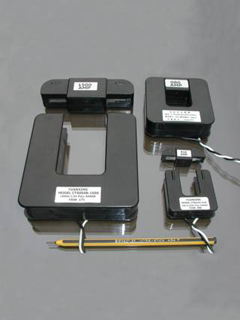

Clamp on Current Transformers -
Clamp on Current Transformers For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale Clamp on Current Transformers, Made in China, High Quality Products!, China current transformer, instrument transformer Supplier, Manufacturer.
Features
● Low cost.
● 6 standard size
● Clamp-on core design,safer,easier installation,
portable
● Both Silicon Steel & Nickel Alloy cores available
Applications
● Silicon Steel cores provide moderate accuracy
and lower cost for appropriate current measurement current
● Nickel Alloy cores are suitable for applications
that require the highest accuracy with minimal phase angle error. Applications would include electric power quality monitoring devices
Specifications
● Case material:Polypropylene resin
● Voltage rank:600Vac(isolated condition),
30Vac(bareness condition)
● High Potential:2500Volts/min
● Dielectric Resistance:1000MOhms @ 500 Vdc
● Operating Temperature:-25℃ to +70℃
● Frequency:50 /60 Hz
● RoHS compliant
