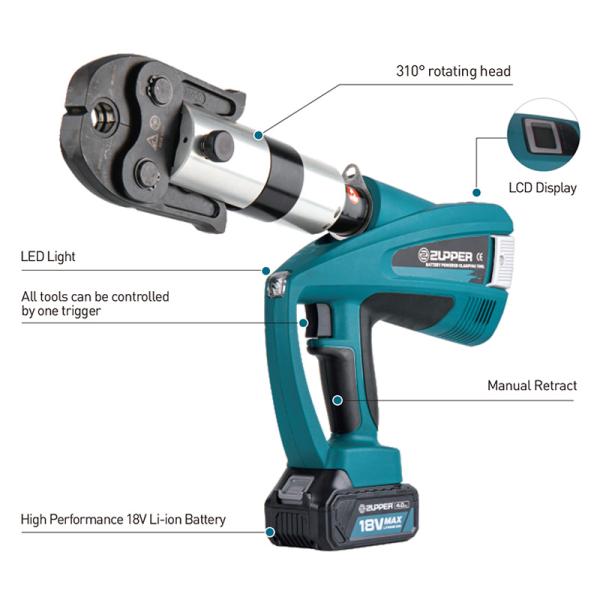

Battery Powered Press Tool
BZ-1550
The BZ-1550 is a press tool with HIGH PERFORMANCE, the
system is upgrade, retract stop for position control.
Enhance efficiency and save time in every task.

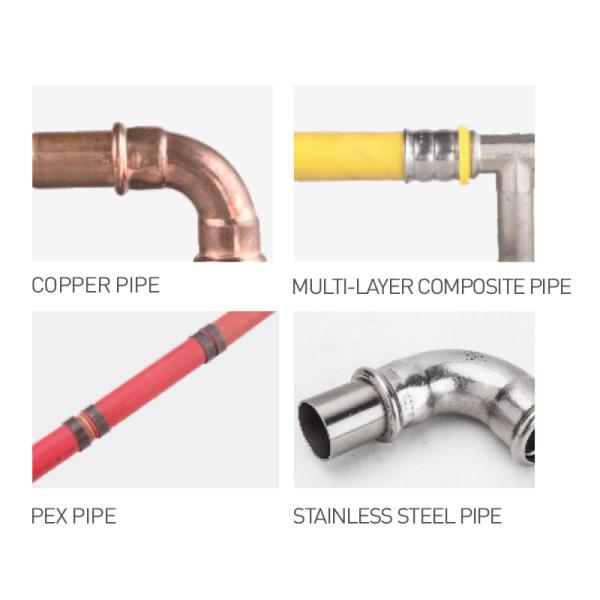

● 12-54mm(1/2"-2") Stainless steel pipe
● 12-108mm(1/2"-4") for PEX, Multi-layer composite and Copper pipe
| Capacity: | 12-54mm for stainless steel pipe | Battery: | 18V Li-ion 4.0Ah |
| 12-108mm(1/2"-4") for PEX,Multi-layer and copper pipe | Charger: | AC 100V-240V 50-60Hz | |
| Output: | 32kN | Charging time: | Approx.80mins |
| Stroke: | 40mm | Service Interval: | 10000cycles |
| Cycle time: | 3-6s(depands on diameter of pipe) | Weight: | 4.5kgs(tool with battery) |
| Pressing cycles/charge | 350cycles(DN20 stainless steel) | 6.7kgs(tool with battery and jaw) | |
| Tool Size: | 375x329x85mm | ||
| Accessories: | |||
| MODEL NO. | DESCRIPTION | Weight(kgs) | |
| BZ-1550 | BZ-1550 Battery Press Tool Kit without jaws | 9.65 | |
| 18V Li-ion 4.0Ah | 0.6 | ||
| ACCESSORRIES | Charger | 0.5 | |
| Plastic case | 4.1 | ||

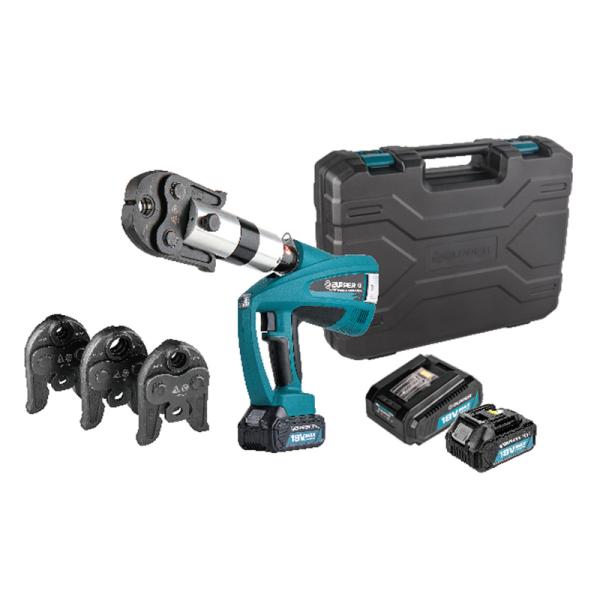

Kit includes: BZ-1550 Press Tool, Two 4.0Ah batteries, One charger and carrying case
