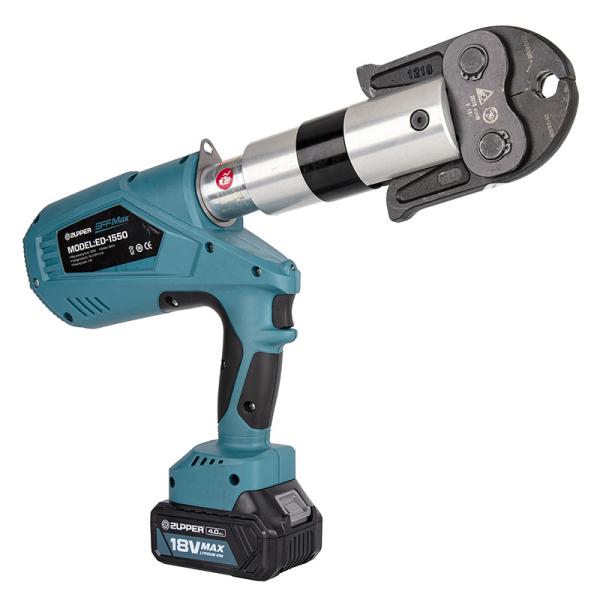

BATTERY POWERED PRESS TOOL
ED-1550

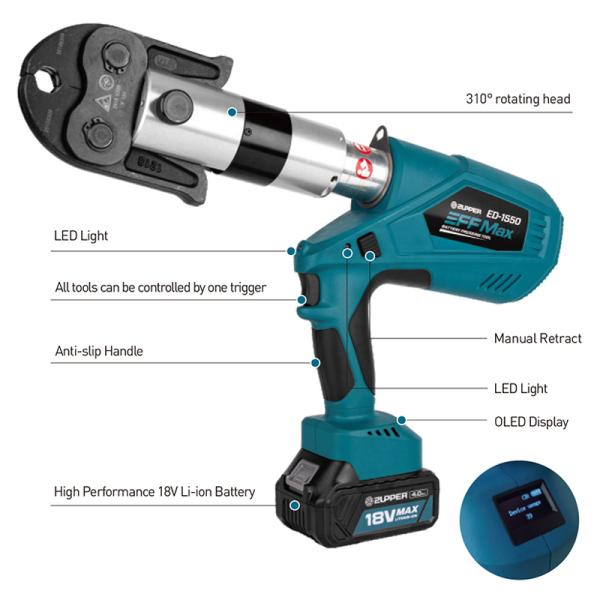

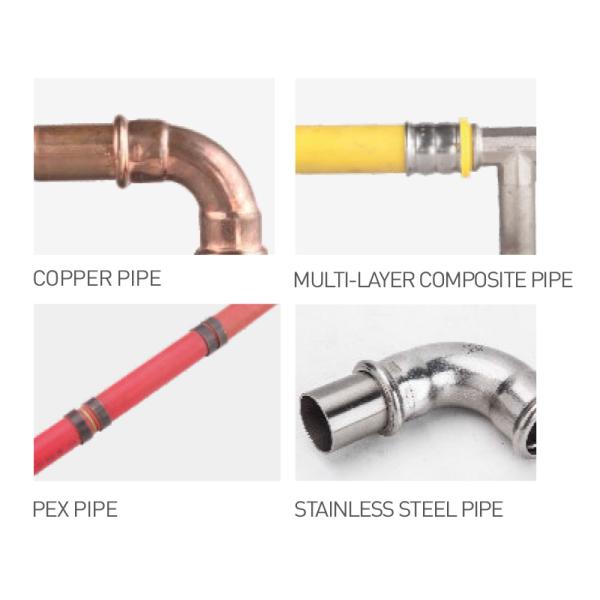

The ED-1550 gives another option for a fast and reliable
way to join copper, stainless steel and PEX pipe. The tool
comes standard with two 18V, 4.0Ah Li-ion batteries and
one charger, motor drives, Micro-computer control
system, OLED screen and double valve hydraulic system, it
can achieve over 350 cycles per charge.
| Capacity: | 12-54mm for stainless steel pipe | Battery: | 18V Li-ion 4.0Ah |
| 12-108mm(1/2”-4”) for PEX,Multi-layer composite | Battery Charger: | AC 100-240V | |
| and copper pipe | Charging Time: | Approx.80mins | |
| Output: | 32kN | Service Interval: | 10000cycles |
| Stroke: | 40mm | Weight: | Approx.3.8kgs (tool with battery) |
| Cycle Time: | Approx. 3-8 seconds | Approx.6.0kgs(tool with battery and jaw) | |
| Oil capacity: | 115ml | Tool Size: | 394×326×84mm |

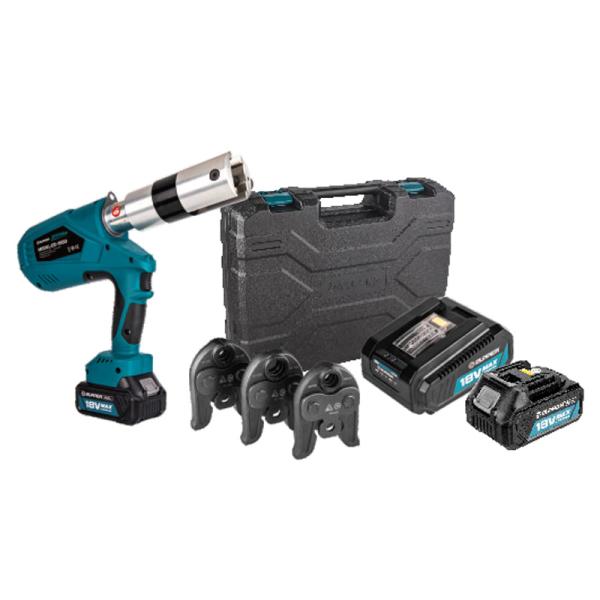

| ED-1550 Battery Press Tool Kit | |||
| MODEL NO. | DESCRIPTION | Weight(kgs) | |
| ED-1550 | ED-1550 Battery Press Tool Kit without jaws | 9.0 | |
| Battery, 18V, 4.0Ah Li-Ion | 0.6 | ||
| ACCESSORRIES | Charger | 0.5 | |
| Plastic case | 4.1 | ||
