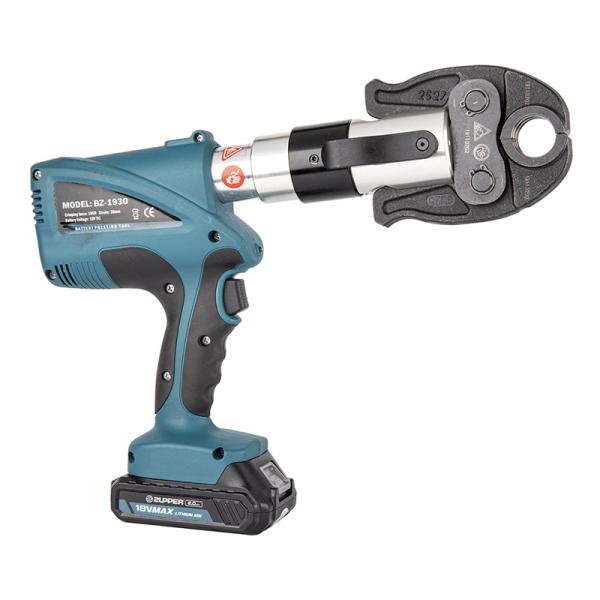

BATTERY POWERED PRESS TOOL
BZ-1930

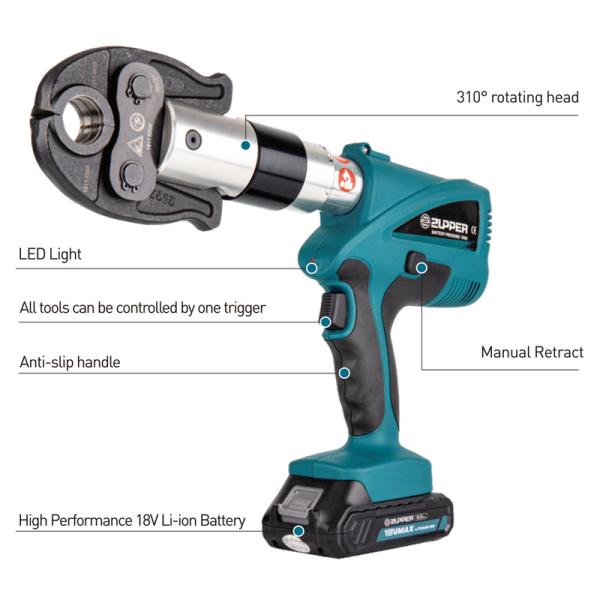

The BZ-1930 is a MINI gun style press tool, it is compact and high performance with the light weight 2KGS. The head can be rotated 310°, all tools canbe controlled by one trigger.

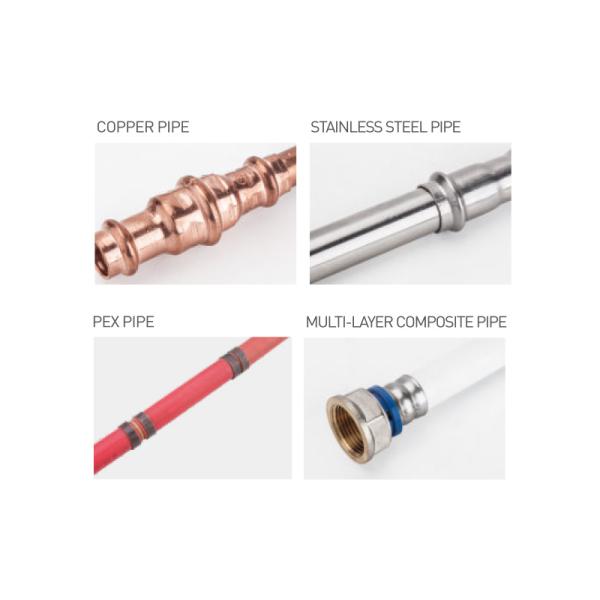

● 12-35mm Stainless steel pipe
● 12-35mm(1/2”-1 3/8”) Copper pipe
● 16-40mm PEX&Multi-layer composite pipe
| Capacity: | 12-35mm Stainless steel pipe | Battery: | 18V Li-ion 2.0Ah |
| 12-35mm(1/2"-1 3/8") Copper pipe | Battery Charger: | AC 100V-240V 50-60Hz | |
| 16-40mm PEX&Multi-layer composite pipe | Charging Time: | Approx. 40mins | |
| Output: | 19kN | Service Interval: | 10000cycles |
| Stroke: | 30mm | Weight: | Approx.2.4kgs(tool with battery) |
| Oil capacity: | Approx.60ml | Approx.3.9kgs(tool with battery and jaw) | |
| Pressing Cycle Time: | 4-6S | Tool Size: | 300x276x75mm |
| Pressing Cycles/charge: | 180cycles(DN 20 Stainless Steel) | ||
| Model No. | Description | Weight(KGS) | Standard Pack |

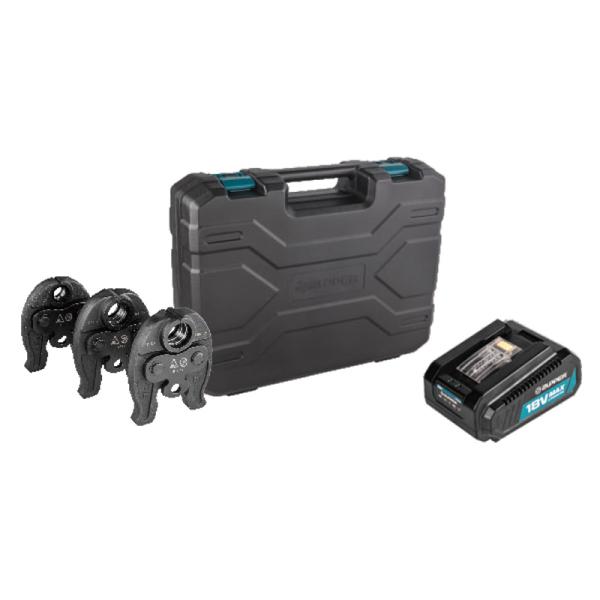

| BZ-1930 | BZ-1930 Battery Press Tool Kit without jaws | 6.20 | 1set |
| ACCESSORIES | 18V, 2.0Ah Li-Ion Batteries | 0.3 | 2pcs |
| Charger | 0.5 | 1pc | |
| Plastic case | 2.90 | 1pc | |
| Sealing ring of cylinder: | 1set | ||
| Sealing ring of safety valve: | 1set |
