BATTERY POWERED PRESS TOOL
PZ-1930

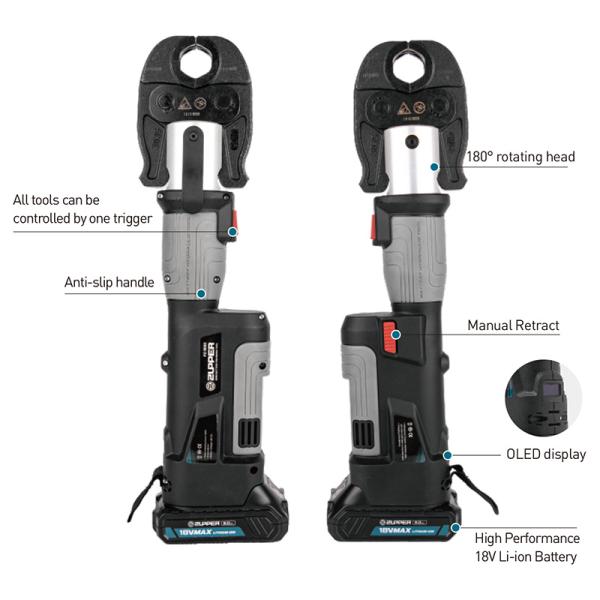

The PZ-1930 is a mini press tool with
in-line grip, it is efficient and reliable way to join copper,
stainless steel and PEX&Multi-layer Pipe.

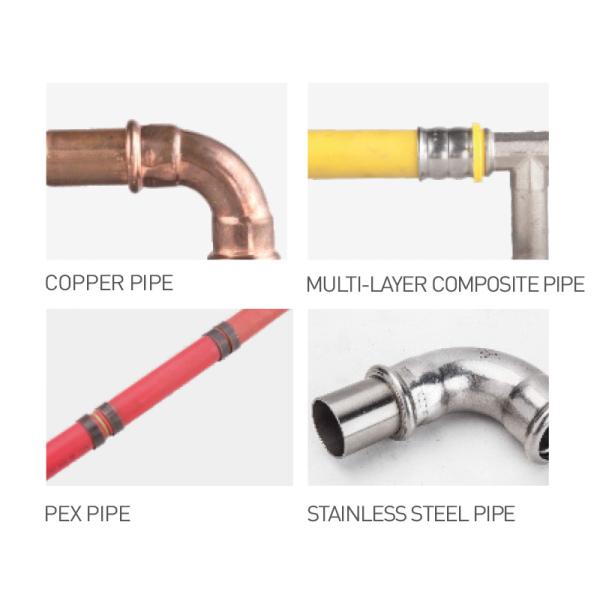

● 12-35mm Stainless steel pipe
● 12-35mm(1/2"-1 3/8") Copper pipe
● 16-40mm PEX&Multi-layer pipe
| Capacity: | 12-35mm Stainless steel pipe；12-35mm(1/2"-1 3/8") Copper pipe；16-40mm PEX&Multi-layer pipe | ||
| Battery: | 18V Li-ion 2.0Ah | ||
| Battery Charger: | AC 100V-240V 50-60Hz | ||
| Output: | 19kN | ||
| Stroke: | 30mm | ||
| Oil capacity: | Approx.60ml | ||
| Crimping Cycle Time: | 2-4S | ||
| Crimping Cycles/charge: | 180cycles(DN 20 Stainless Steel) | ||
| Service Interval: | 10000cycles | ||
| Weight: | Approx.2.0kgs(tool with battery)；Approx.3.6kgs(tool with battery and jaw) | ||
| Tool Size: | 363x119x75mm | ||

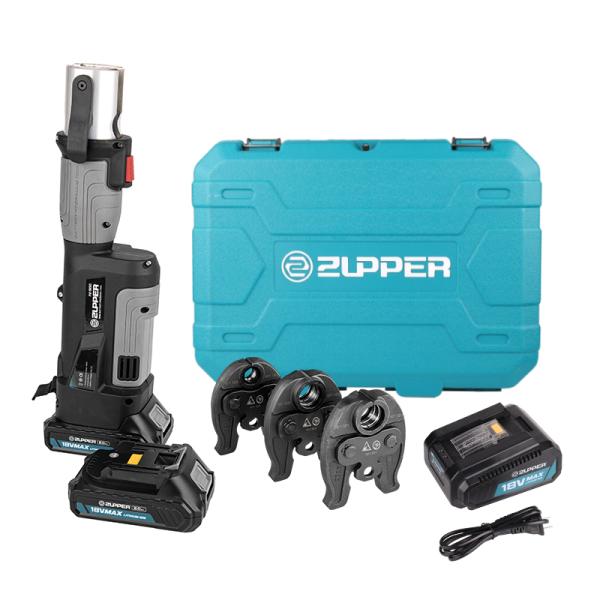

| ACCESSORIES | |||
Battery: | 2pcs | ||
Charger: | 1pc | ||
| Sealing ring of cylinder: | 1set | ||
| Sealing ring of safety valve: | 1set | ||

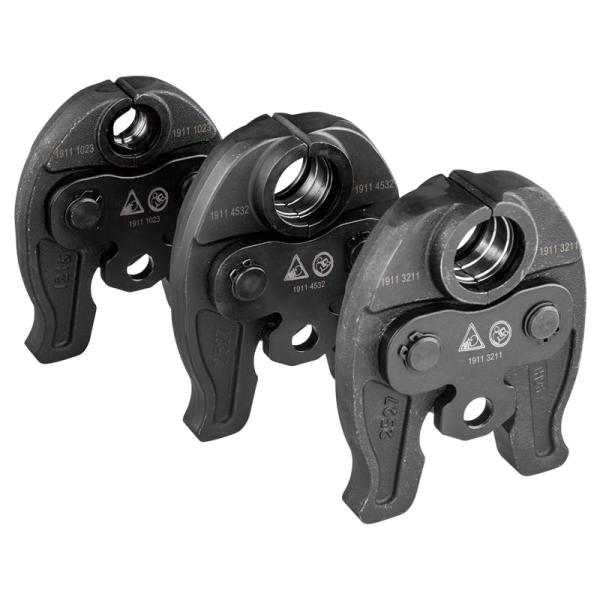

| Press jaw: | At optional | ||
