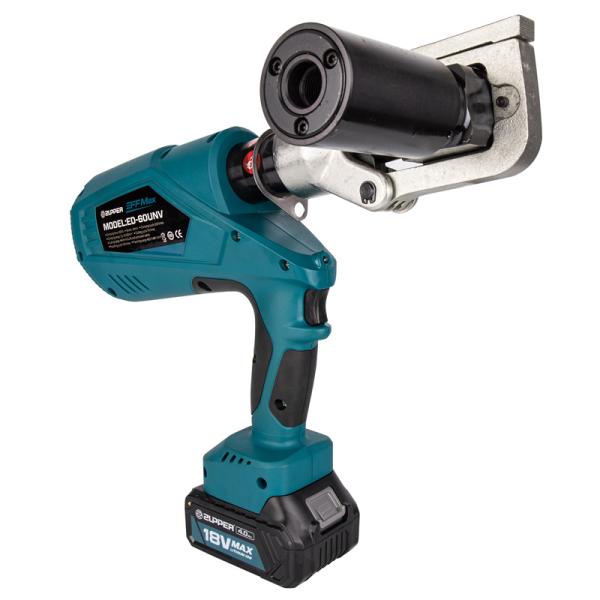

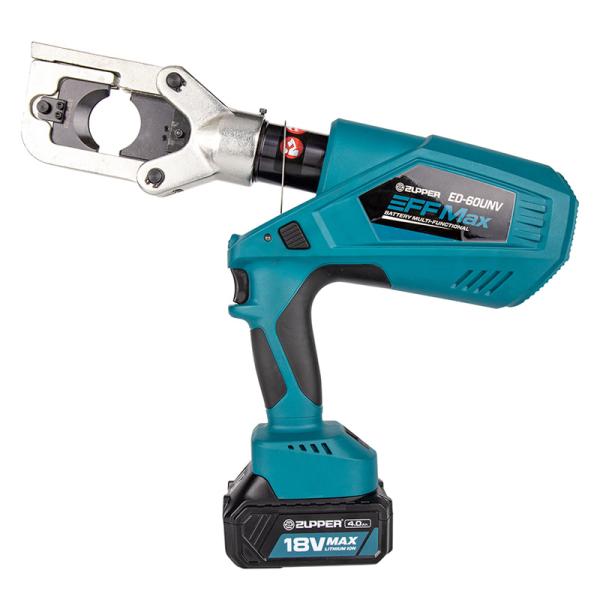

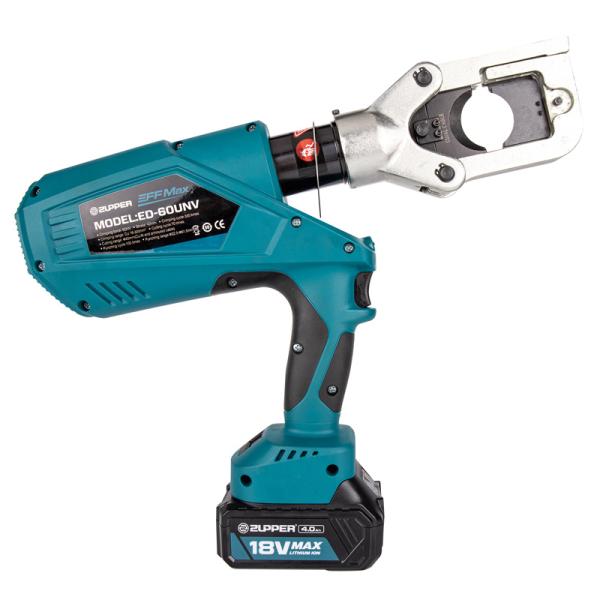

BATTERY POWERED MULTI-FUNCTIONALTOOL
ED-60UNV

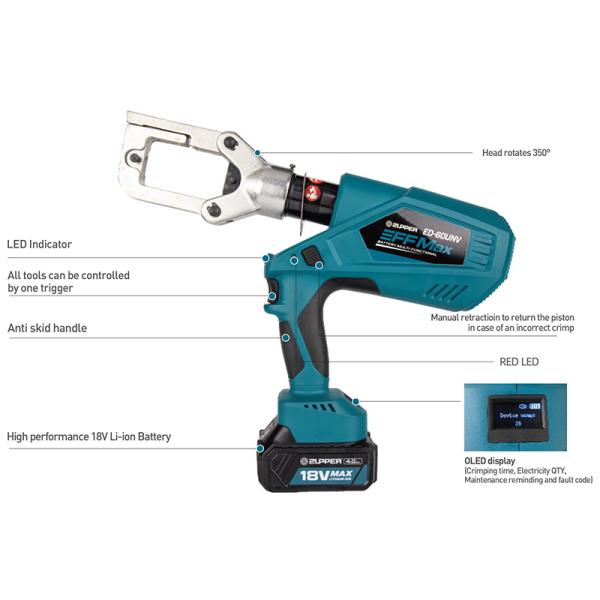

For operations requiring varied application, the ZUPPER offers a multi-functional tool, crimping, cutting and punching in one single tool. The tool comes standard with two 18V, 4.0Ah Li-ion batteries and one charger, motor drives, Micro-computer control system, OLED display and two stage hydraulic system with fast feed and power control.
| Output force: | 60kN |
| Stroke: | 42mm |
| Cutting/Charge: | 70 cycles |
| Cutting range: | Φ40mm(Cu/Al and armoured cable) |
| Crimping/Charge: | 160 cycles |
| Crimping range: | 16-300mm² |
| Punching/Charge: | 100 cycles |
| Punching range: | Φ22.5-Φ61.5mm |
| Crimping cycle: | 3-5s(Cu150mm²) |
| Cutting Cycle: | 3.8s(Cu150mm²) |
| Punching Cycle: | 6.2s(φ61.5mm on 3mm thickness metal plate) |
| Voltage: | 18V |
| Capacity: | 4.0Ah |
| Charging time: | 80mins |
| Package: | plastic box |

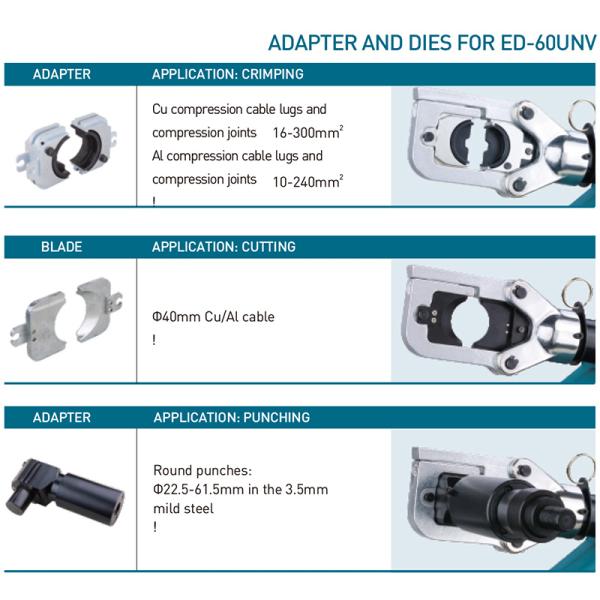

| ACCESSORIES: | |
| Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm² Punches&die (Type D): 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm | |
| Blade: | 1set |
| Adapter for crimping: | 1pc |
| Adapter for punching: | 1pc |
| 3/4", 16UN Draw stud: | 1pc |
| 7/16", 20UN Draw stud: | 1pc |
| Spacer: | 1pc |
| Battery:! | 2!pcs |
| Charger: | 1pc |
| Sealing ring of cylinder:!!!!!!!!!!!!!!!!!!!!!!!!!!! | 1set |
| Sealing ring of safety valve: | 1set |
