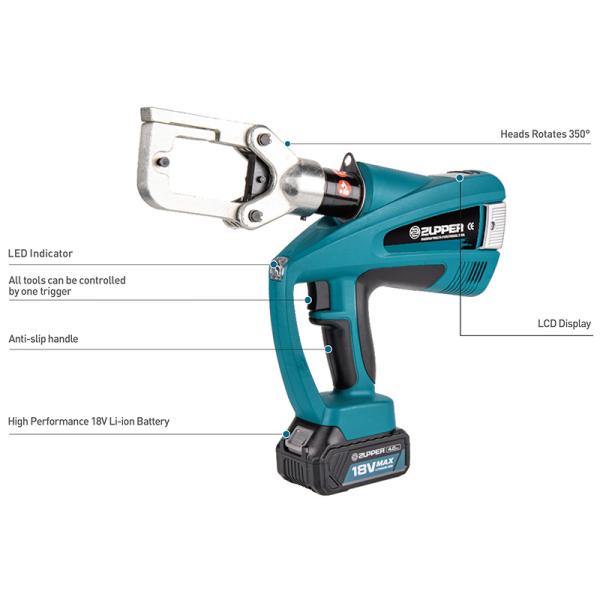

BATTERY POWERED MULTIFUCTIONAL TOOL
BZ-60UNV
For operations requiring varied application, the ZUPPER offers a multi-functional tool, crimping, cutting and punching in one single tool. The tool comes standard with two 18V, 4.0Ah Li-ion batteries and one charger, motor drives, micro-computer control system, LCD display and two stage hdraulic system with fast feed and power control. With the system of RSWRETRACTION STOP, the tool can continue mutiple operate with high efficiency.
| Output force: | 60kN |
| Stroke: | 42mm |
| Cutting/Charge: | 70 cycles |
| Cutting range: | Φ40mm(Cu/Al and armoured cable) |
| Crimping/Charge: | 160 cycles |
| Crimping range: | 16-300mm² |
| Punching/Charge: | 100 cycles |
| Punching range: | Φ22.5-Φ61.5mm |
| Crimping cycle: | 4s(Cu150mm²) |
| Cutting Cycle: | 3.8s(Cu150mm²) |
| Punching Cycle: | 6.2s(φ61.5mm on 3mm thickness metal plate) |
| Voltage: | 18V |
| Capacity: | 4.0Ah |
| Charging time: | 80mins |
| Package: | plastic box |

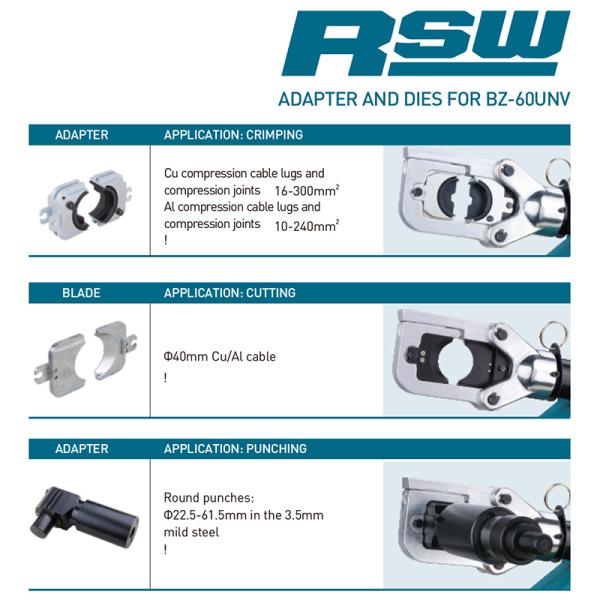

| ACCESSORIES: | |
| Crimping dies: 16,25,35,50,70,95,120,150,185,240,300mm² Punches&die (Type D): 22.5, 28.3, 34.6, 43.2, 49.6, 61.5mm | |
| Blade: | 1set |
| Adapter for crimping: | 1pc |
| Adapter for punching: | 1pc |
| 3/4", 16UN Draw stud: | 1pc |
| 7/16", 20UN Draw stud: | 1pc |
| Spacer: | 1pc |
| Battery:! | 2!pcs |
| Charger: | 1pc |
| Sealing ring of cylinder:!!!!!!!!!!!!!!!!!!!!!!!!!!! | 1set |
| Sealing ring of safety valve: | 1set |
Related Products
HAND CRIMPING TOOL
T-007A
HAND CRIMPING TOOL
AN-04WFL
HAND CRIMPING TOOL
AH-03C
HAND CRIMPING TOOL
AP-10
HAND CRIMPING TOOL
AH-50WF

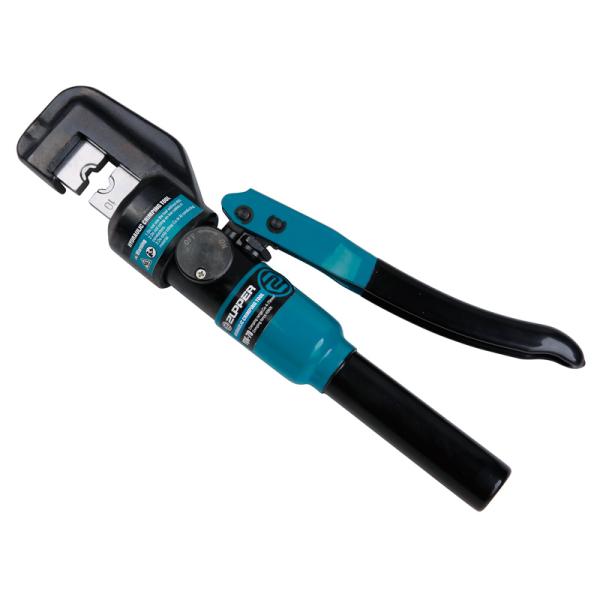

MANUAL HYDRAULIC CRIMPING TOOL
