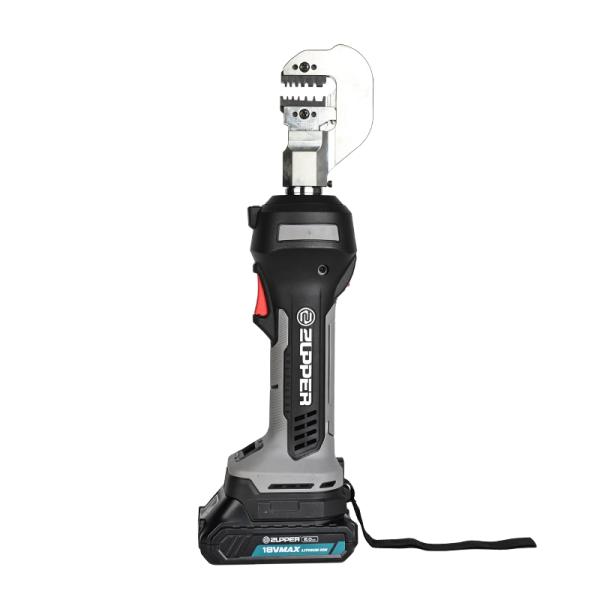

BATTERY POWERED CRIMPING TOOL
BLM-1512
Quick and Safe WiringPre-contacting function
Pre-contacting lugs,convenient to put in cable
The ZUPPER BLM series with latest technology,updatedstructure and extended lifetime. lt is slim and smart,really a good choice with in-line grip.
| Rated pressure: | 15kN |
| Stroke: | 12mm |
| Max.crimping range: | Wire Ferrule End Sleeves:0.5-50mm² |
| Non-insulated Terminal and connector:0.5-10mm² | |
| Pre-insulated Terminal and Connector:0.5-6mm² | |
| Weight: | 1.9kgs |
| Tool size: | 383×131×80mm |
| Accessories | |
| Crimping dies: | 4pairs |
| Battery: | 18V Li-ion 2.0Ah |
| Charger: | AC 100V-240V 50-60Hz |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve: | 1set |
Noted: The standard die for Wire Ferrule End Sleeves is 0.5-16mm².
25-50mm² is optional.
