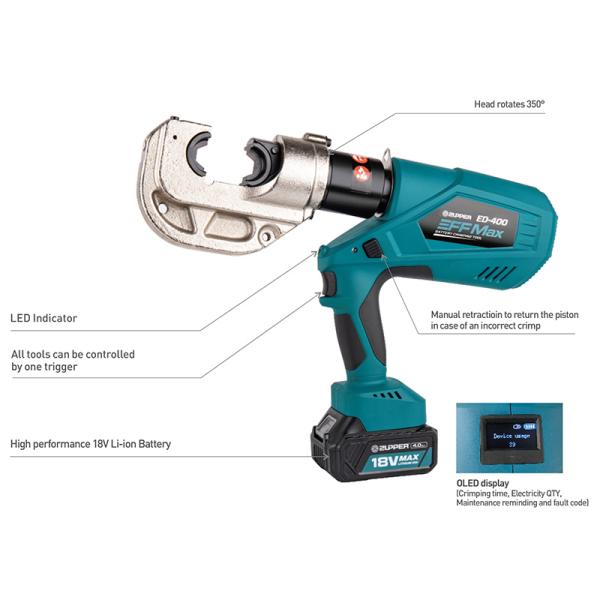

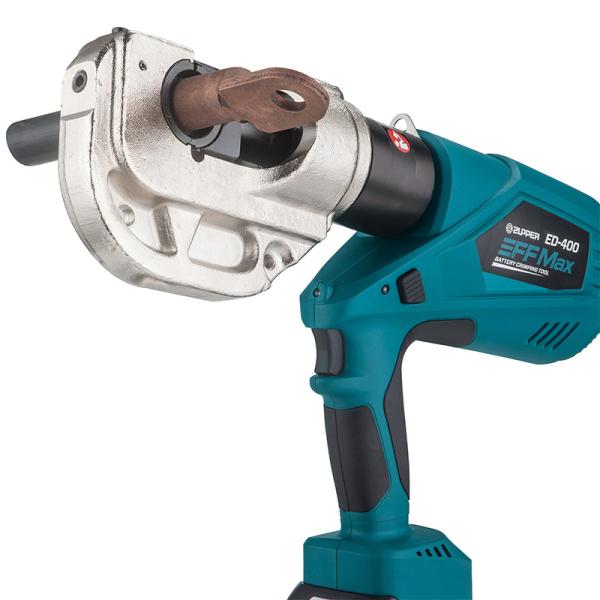

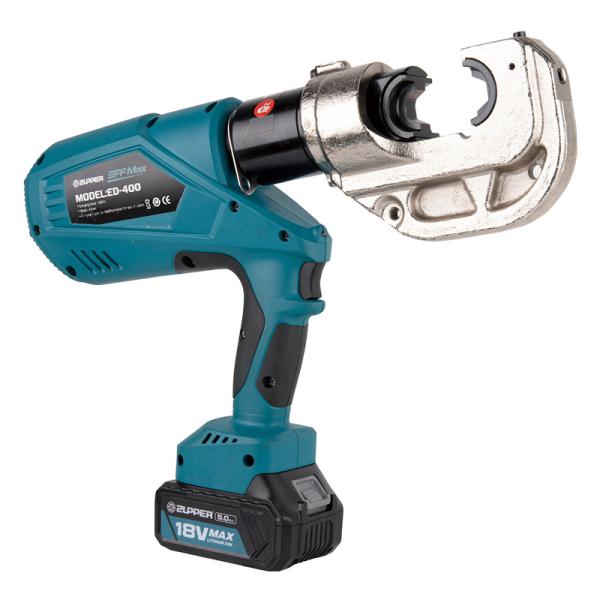

BATTERY POWERED CRIMPING TOOL
ED-400
The ED Series give another option for a fast and reliable way to crimp operation. The tool comes standard with two 18V, 4.0Ah Li-ion batteries and one charger, motor drives, Micro-computer control system,OLED display and double valve hydraulic system, it can achieve over180 cycles per charge
| Rated pressure: | 120kN |
| Stroke: | 42mm |
| Oil capacity: | 160ml |
| Max crimping: | Cu 400mm²/Al 300mm² |
| Cycle time | 5~8s(CU 150 mm²) |
| Cycles/charger: | Approx.120 cycles (CU 150 mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |

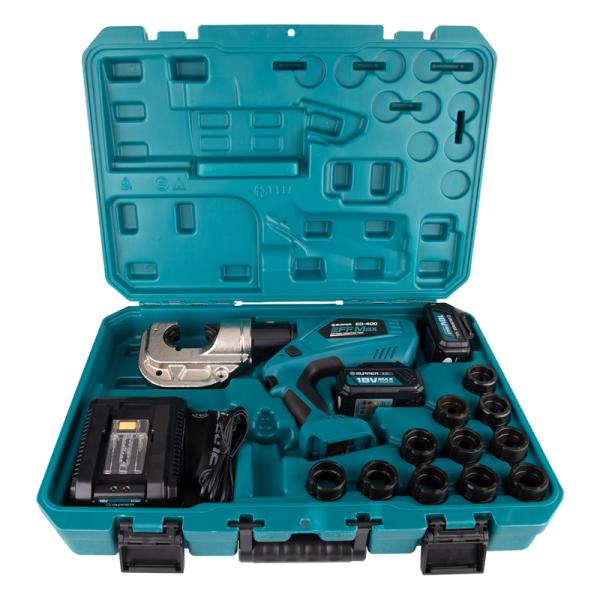

| Package: | Plastic box |
| Weight incl. battery: | 7.3kgs |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300,400mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
Related Products
RSC-SINGLE HYDRAULIC STEEL CYLINDER
RSC series
MECHANICAL CABLE CUTTING TOOL
ZC-160A

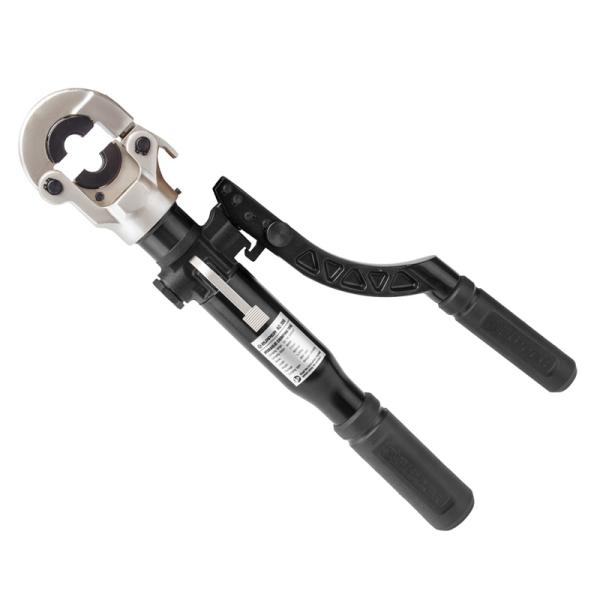

MANUAL CRIMPING TOOL
