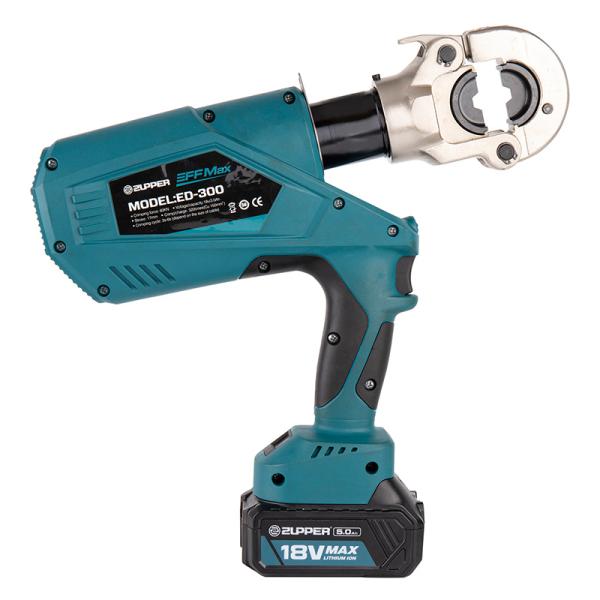

BATTERY POWERED CRIMPING TOOL
ED-300
| Rated pressure: | 60kN |
| Stroke: | 17mm |
| Oil capacity: | 115ml |
| Max crimping: | Cu 300mm²/Al 240mm² |
| Cycle time | 2.5~5s (CU 150 mm²) |
| Cycles/charger: | Approx.300 cycles (CU 150 mm²) |
| Voltage/capacity: | 18V/4.0Ah |
| Charging time: | Approx.80 mins |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Package: | Plastic box |
| Weight incl. battery: | 4.6kgs |
| ACCESSORIES | |
| Crimping dies: | 16,25,35,50,70,95,120,150,185,240,300 mm² |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve | 1set |
