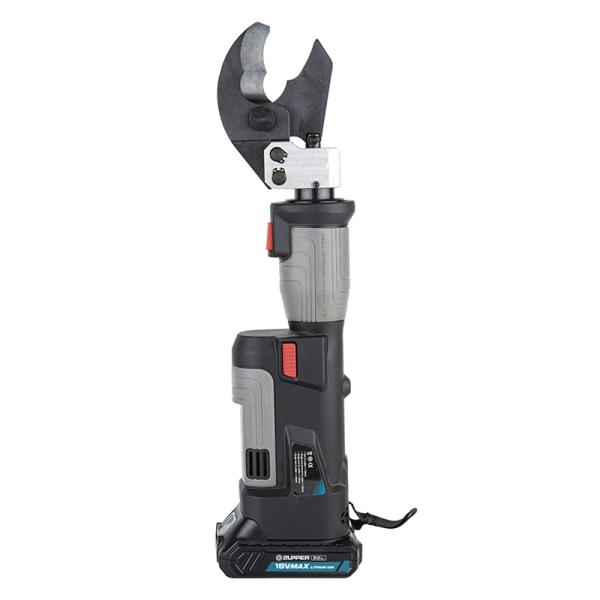

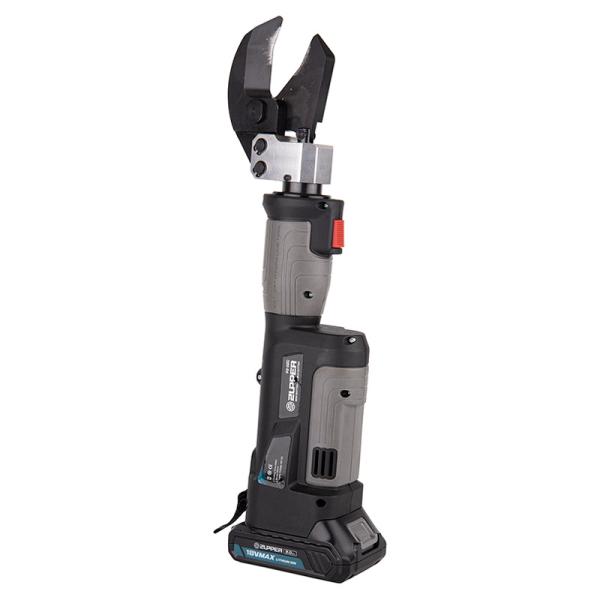

BATTERY POWERED CABLE CUTTING TOOL
PZ-32C/32CX
For cutting Cu/Al Cable up to 32mm dia.
For cutting fine and superfine stranded Cu/Al cables up to 32mm dia.
| Technical data | PZ-32C | PZ-32CX | |
| Rated pressure: | 20kN | 20kN | |
| Stroke: | 29mm | 29mm | |

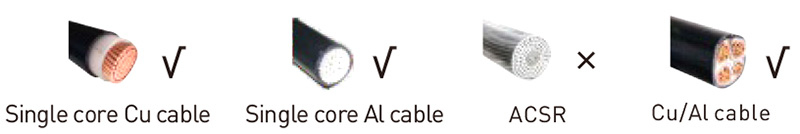

| Cutting range: | Single core Cu cable | ≤φ23mm | ≤φ23mm |
| Four core Cu Cable | ≤φ23mm | ≤φ23mm | |
| Single core Al cable | ≤φ25mm | ≤φ25mm | |
| Single core armoured Cu cable | ≤φ32mm | ≤φ32mm | |
| Thin Cu cable | ≤φ32mm | ||
| Oil capacity: | 60ml | ||
| Voltage/capacity: | 18V/2.0Ah | ||
| Charging time: | 40 mins | ||
| Charging voltage: | AC 100V~240V ;50~60Hz | ||
| Package: | Plastic box | ||
| Weight(with battery): | 3.1kgs | 3.1kgs | |
| Size: | 438x164x75mm | ||
| Accessories | |||
| Battery: | 2pcs | ||
| Charger: | 1pcs | ||
| Sealing ring of cylinder: | 1set | ||
| Sealing ring of safety valve | 1set | ||
| |||
