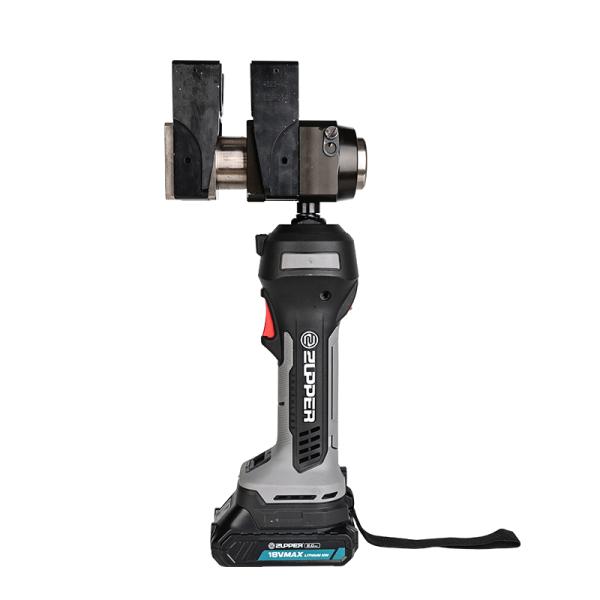

BATTERY POWERED AXIAL PRESS TOOL
BLM-4523
For axial press air conditioner pipe
Be used in air conditioner, heating, refrigeration system
| Rated pressure: | 45kN |
| Stroke: | 23mm |
| Connecting range: | Φ6.35-38.1mm copper pipe |
| Oil capacity: | Approx.60ml |
| Ambient temperature: | -10℃~40℃ |
| Service interval: | 10000cycles |
| Voltage of battery: | DC 18V,2.0Ah |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Charging time: | Approx.40mins |
| Weight: | 4.4kgs(with battery with jaw) |
| Tool size: | 383x155x80mm |
| Accessories: | |
| Connecting jaws(optional): | 6.35, 9.52, 12.7, 15.88, 19.05, 22.2 |
| 25.4, 28.6, 31.8, 34.9, 38.1mm | |
| Battery: | 2 pcs |
| Charger: | 1 pc |
| Sealing ring of cylinder: | 1 set |
| Sealing ring of safety valve: | 1 set |
