BATTERY POWERED AXIAL PRESS TOOL
PZ-4523

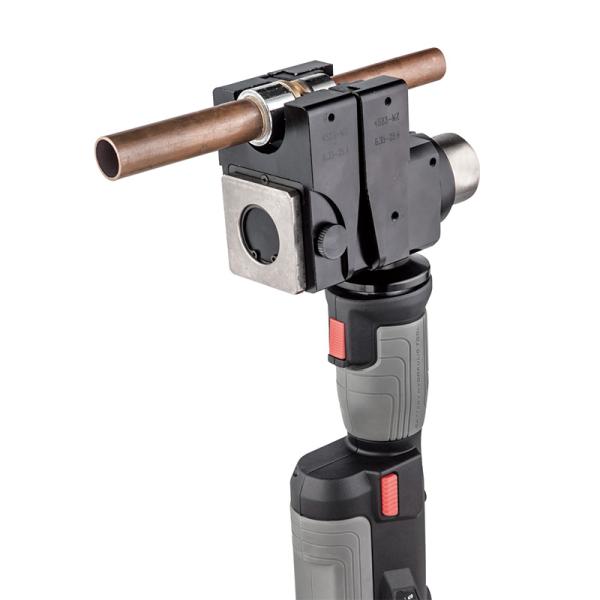

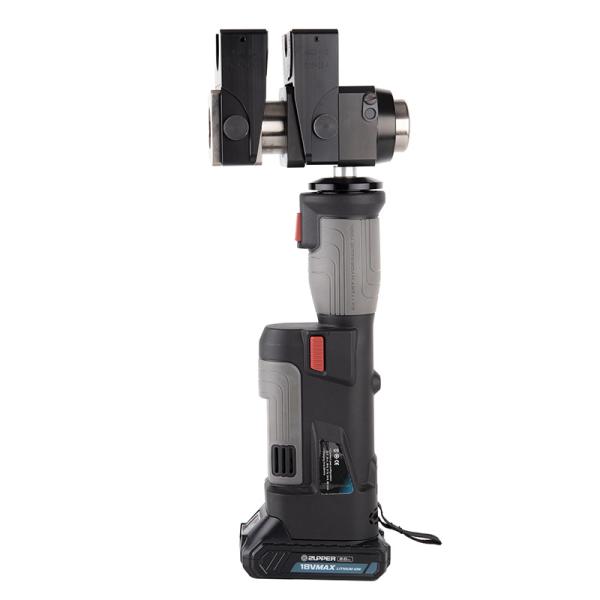

PZ-4523 is the axial press tool for air conditioning pipe connecting.
It is powered by Li-ion, actuated by motor and controlled by MCU. With double valve hydraulic system,
it is a perfect tool to be used in air conditioning systems, heating systems, refrigeration systems and water supply systems.
| Rated pressure: | 45kN | Accessories: | |
| Stroke: | 23mm | Connecting jaws(optional): | 6.35, 9.52, 12.7, 15.88, 19.05, 22.2, |
| Connecting range: | Φ6.35-38.1mm copper pipe | 25.4, 28.6, 31.8, 34.9, 38.1mm | |
| Hydraulic oil: | Shell Tellus T15# S2V Hv15 60ml | Battery: | 2 pcs |
| Ambient temperature: | -10℃~40℃ | Charger: | 1 pc |
| Voltage of battery: | DC 18V,2.0Ah | Sealing ring of cylinder: | 1 set |
| Charging voltage: | AC 100V~240V ;50~60Hz | Sealing ring of safety valve: | 1 set |
| Charging time: | Approx.40mins | Service interval: | 10000cycles |
| Weight: | 3.4kgs(without battery, without jaws) | ||
| 4kgs(with battery, with jaws) | |||
| Size of tool: | 380x155x75mm |

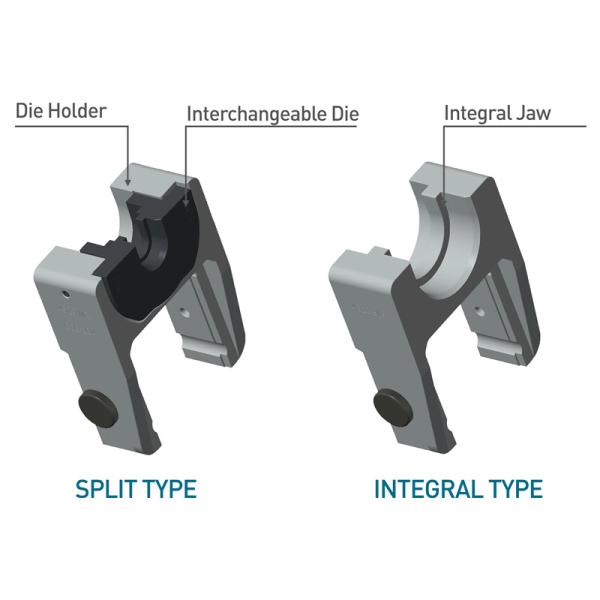

● The dies for the tool is optional, there are split type and integral type:
● Split type: 6.35, 9.52, 12.7, 15.88, 19.05, 22.2, 25.4mm
● Integral type: 28.6, 31.8, 34.9, 38.1mm

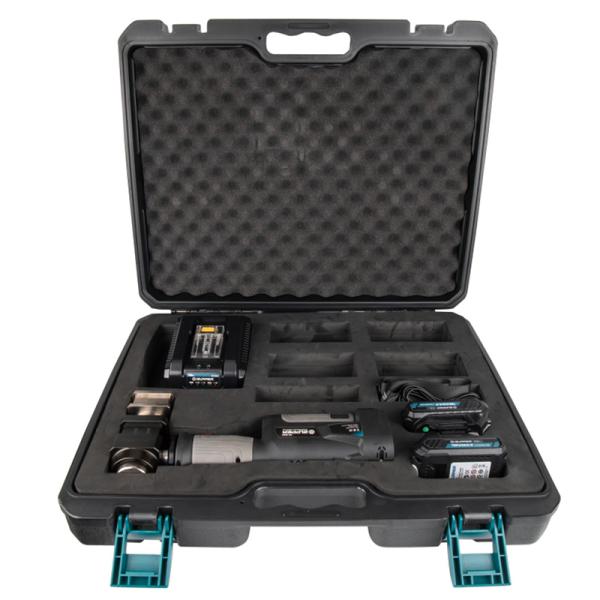

Kit includes: PZ-4523 AXIAL PRESS TOOL, Connecting jaws,
Two 2.0Ah Batteries, One Charger and Carrying Case.
