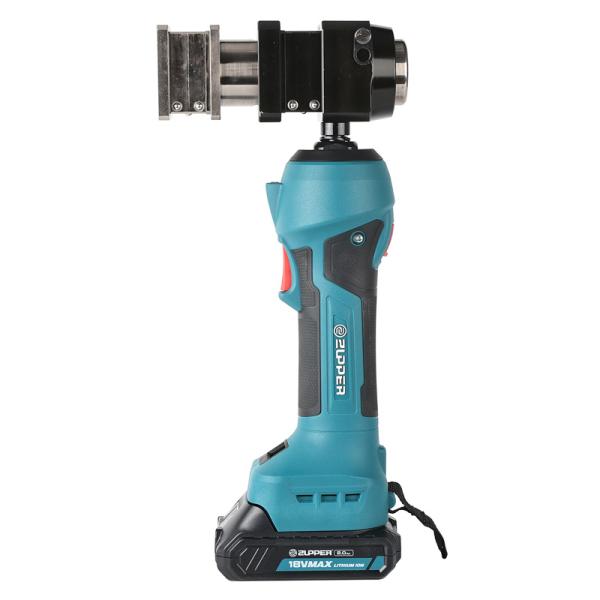

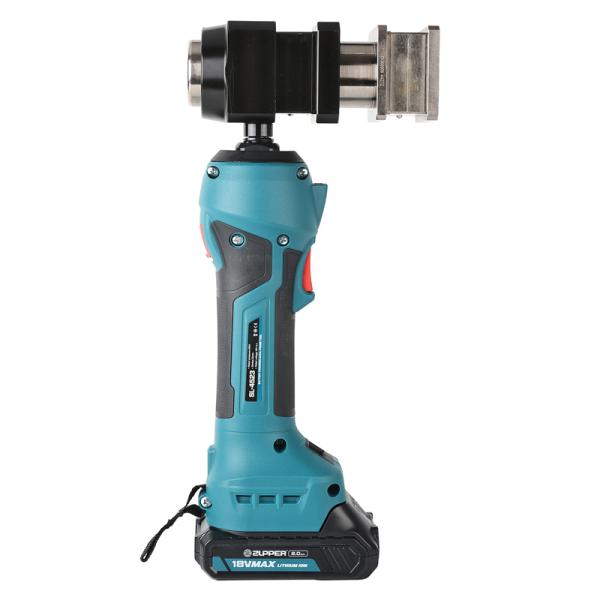

BATTERY POWERED AXIAL PRESS TOOL
SL-4523
For axial press air conditioner pipe
Be used in air conditioner, heating, refrigeration system
Rated pressure: | 45kN |
Stroke: | 23mm |
Connecting range: | Φ6.35-38.1mm copper pipe |
Hydraulic oil: | 35ml |
Ambient temperature: | -10℃~40℃ |
Service interval: | 10000cycles |
Voltage of battery: | DC 18V,2.0Ah |
Charging voltage: | AC 100V~240V ;50~60Hz |
Charging time: | Approx.40mins |
Weight: | 4.4kgs(with battery with jaw) |
Tool size: | 347x155x76mm |
Accessories: | |
Connecting jaws(optional): | 6.35, 9.52, 12.7, 15.88, 19.05, 22.2 |
25.4, 28.6, 31.8, 34.9, 38.1mm | |
Battery: | 2 pcs |
Charger: | 1 pc |
Sealing ring of cylinder: | 1 set |
Sealing ring of safety valve: | 1 set |
