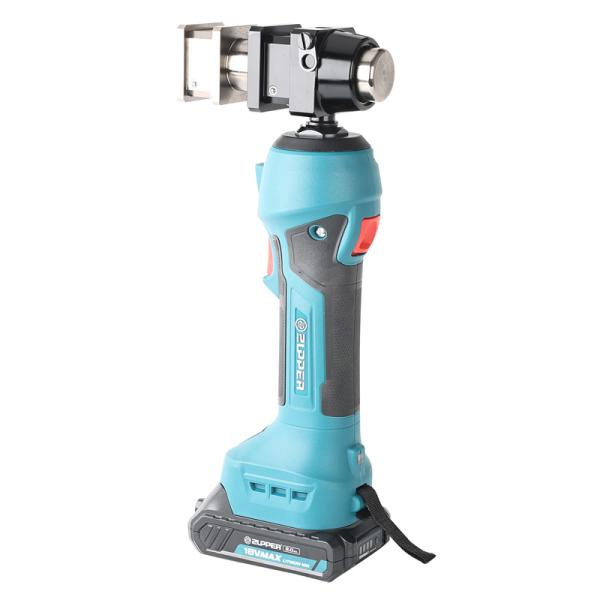

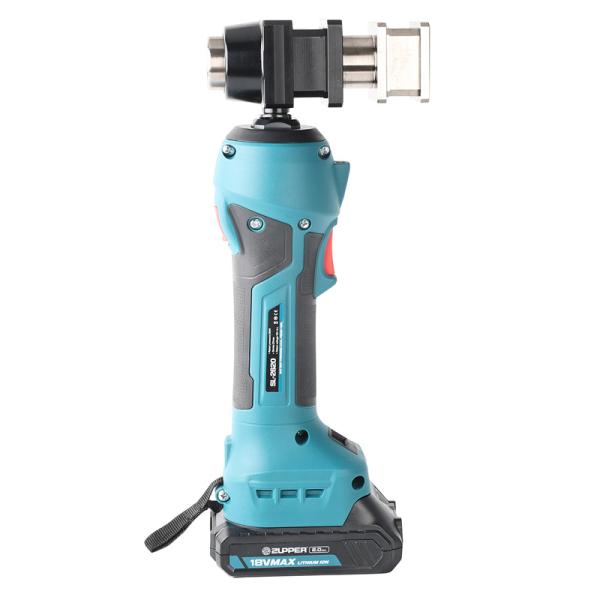

BATTERY POWERED AXIAL PRESS TOOL
SL-2620
For axial press air conditioner pipe
Be used in air conditioner, heating, refrigeration system
| Rated pressure: | 26kN |
| Connecting range: | φ6.35-28.6mm copper pipe |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Charging time: | Approx.40mins |
| Hydraulic oil: | 35ml |
| Stroke: | 20mm |
| Service interval: | 10000cycles |
| Voltage of battery: | DC 18V,2.0Ah |
| Ambient temperature: | -10℃~40℃ |
| Weight: | 3.2kgs(with battery with jaw) |
| Tool size: | 331x130x76mm |
| Accessories: | |
| Connecting jaws(optional): | 6.35、9.52、12.7、15.88、19.05、 |
| 22.2、25.4、28.6mm (Integral type) | |
| Battery: | 2 pcs |
| Charger: | 1 pc |
| Sealing ring of cylinder: | 1 set |
| Sealing ring of safety valve: | 1 set |
