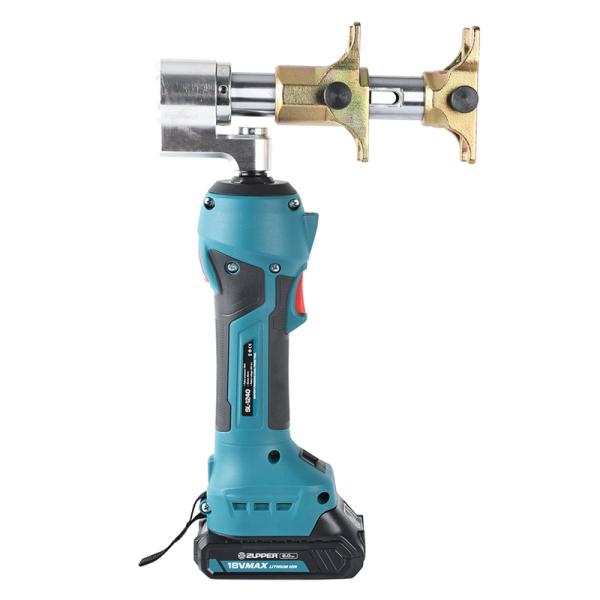

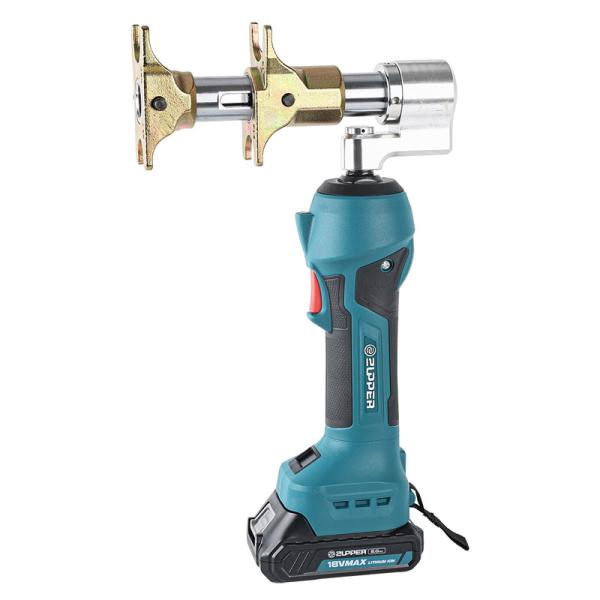

BATTERY POWERED AXIAL PRESS TOOL
SL-1240
SL-1240 is the newest addition to the mini axial
presstool, it is effient and reliable way to connect
PEX&Multi-layer composite pipe with fittings.
PEX pipe:16-32mm
Multi-layer pipe 16-25mm
| Output: | 18kN |
| Stroke: | PEX pipe:16-32mm |
| Connecting range: | Multi-Layer composite pipe16-25mm |
| 16x2.2, 20x2.8, 25x3.5, 32x4.4mm | |
| Expanding/Connecting range: | 39mm |
| Service interval: | 10000cycles |
| Voltage of battery: | DC 18V,2.0Ah |
| Connecting cycle time | Approx. 2.5-5S |
| Charging voltage: | AC 100V~240V ;50~60Hz |
| Charging time: | Approx.40mins |
| Weight: | 3.3kgs |
| Tool size: | 364x216x76mm |
| Accessories: | |
| Battery: | 2pcs |
| Charger: | 1pc |
| Sealing ring of cylinder: | 1set |
| Sealing ring of safety valve: | 1set |
