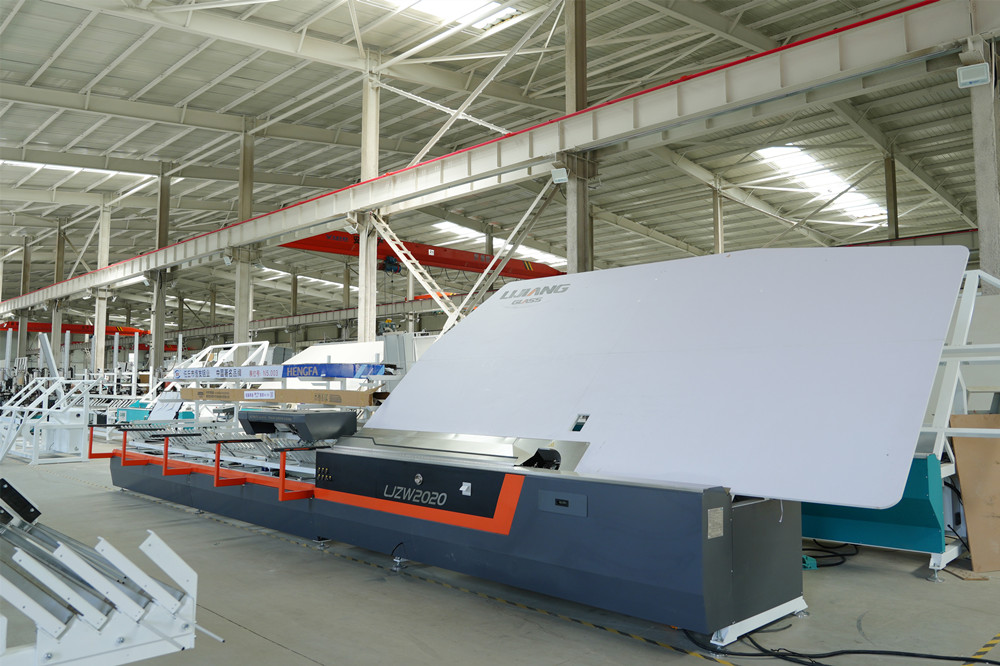

Automatic Spacer Bending Machine

LJZW2020

Automatic Spacer Bending Machine
Get Quote

Automatic Spacer Bending Machine can realize the automatic connection of aluminum spacer, automatic material breaking function and automatic avoidance of aluminum spacer joint.

Details introduce

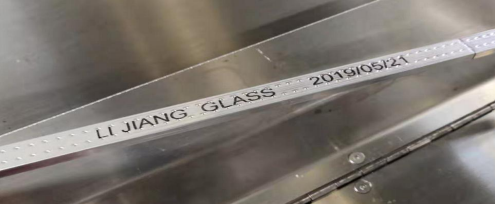

• Printing logo (Option)

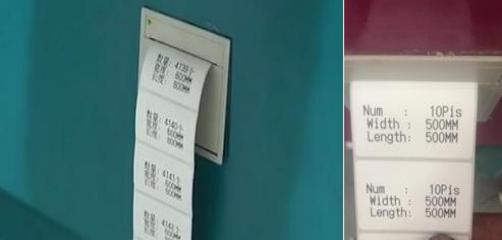

•Printing label sticker function (Optional)

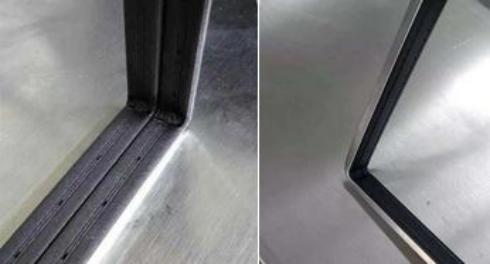

• Bending warm spacer (Optional)


Max. bending size


1800*2000mm（In once）/ 2500*4000mm（In twice）

Min. bending size

150*300mm

Aluminum spacer width

5.5-26.5mm

Dimensional error

±0.5mm

Angle error

±1º

Processing speed

17s

Air supply

≥0.65MPa

Total power

AC220/380V 50Hz 2.5KW

Dimension

10500mm*2200mm*2600mm

Automatic Spacer Bending Machine, Bending Machine For Spacer Frames, Automatic Bending Machine
