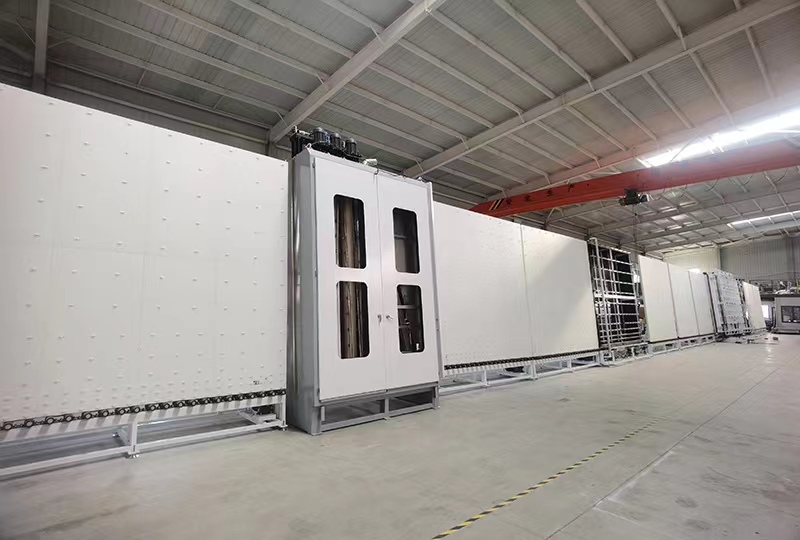

Insulating Glass Machine

Vertical Insulating Glass Processing Line to make glass processing more simple,intelligent and efficient.

Main Features of Automatic Insulating Glass Production Line

• Automatic Insulating glass production line has 7 sections

• 01 transfer section

The transfer section is a loading zone conveyor that is designed to load glass sheets into the washing machine. The transfer section is equipped with Coating detection mechanism, automatic detection of offline Low-e film.

• 02 Glass washing and drying section

Main feature

•In order to avoid corrosion we use stainless steel where there is a contact with the water in our machine body. The inside and outside of the machine is made of high quality stainless steel.

•Using 6 pieces of soft brushes with 0.1mm soft hair, can wash low-e glass

• Pre-washing (Optional)

• New air knife uses aluminum profile (Duckbill Air Knife), the size of the air outlet is adjusted by the aluminum profile duck beak. This can reduce the number of adjusting screws, ensure that each screw is not loose, and avoid the resonance of the air knife.

• The air knife can automatically adjust the width of the air knife according to the thickness

• The operation box with washing speed display, can accurately display washing speed (8-10m)

• Water tank automatic temperature control, water replenishing system

• European silencer system

• Stainless steel material

• 03 discharge section

• Storage glass

• 04 inspection and installation section

The new structure of this section is changed to an inline beam lifting structure (double beam). It is easy to inspect and wipe the glass

• 05 transfer section

• Automatic measurement of glass thickness. It can be used according to actual needs when working.

• 06 pressing and filling section
