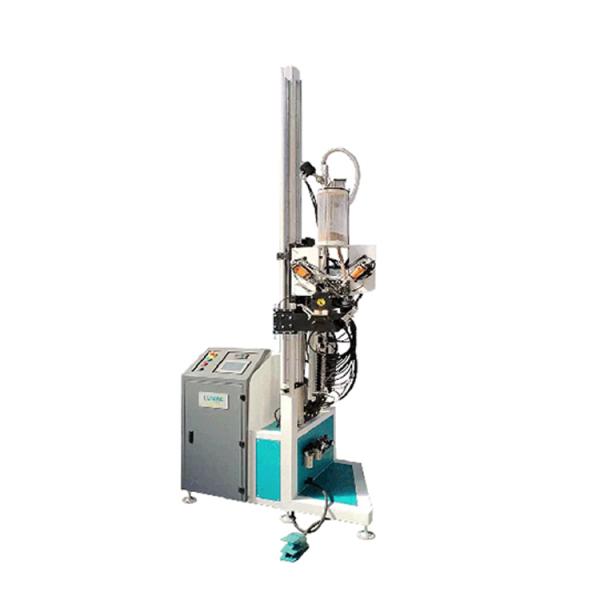

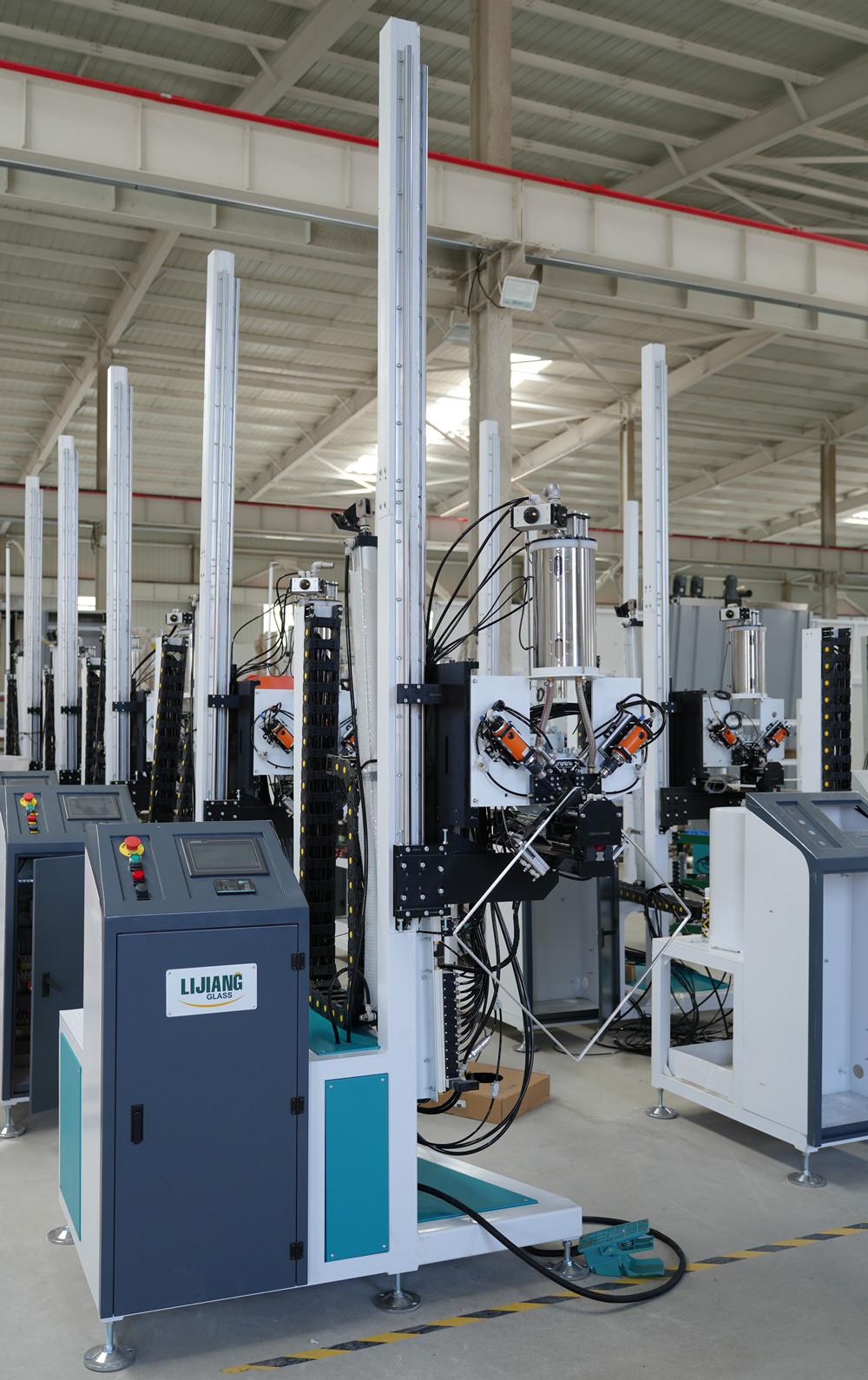

Automatic Desiccant Filling Machine
LJGZ 2020
Automatic Desiccant Filling Machine can automatically drilling, filling and sealing for Aluminum spacer.
1. The height of automatic molecular sieve filling machine can be adjusted according to the size of the spacer frame

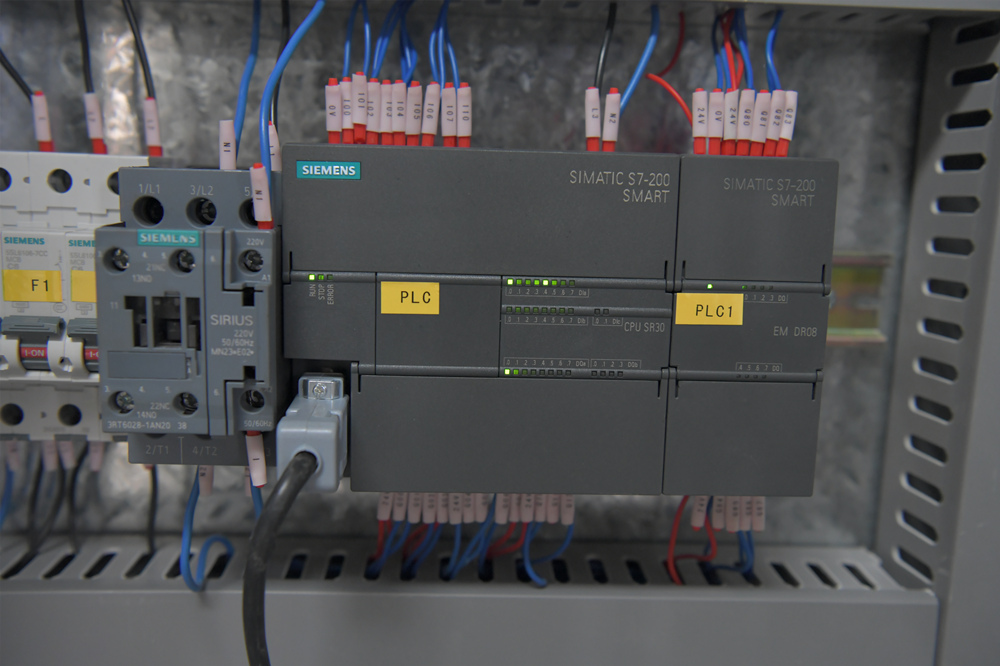

2.Automatic desiccant filling machine Adopt Siemens PLC control system,Touch screen interface, easy operation.Electrical component are all Germany Brand-Siemens.

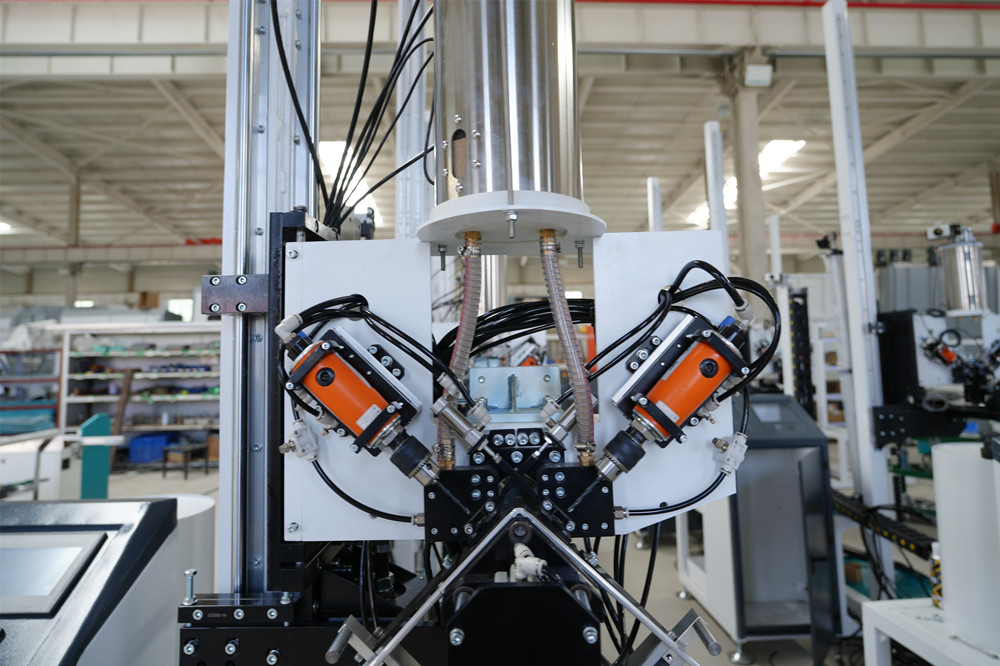

3.Desiccant filling machine have Protection device for machine head.
4.Molecular sieve filling machine can auto drilling, filling and sealing.
5.Molecular sieve can automatically loading from the Materials bucket.
(When the material was used up the sensor will alarming, desiccant will automatically loading )

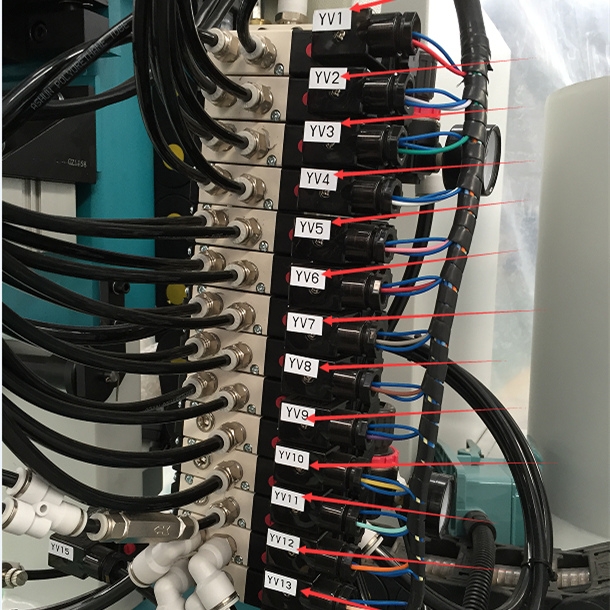

6.All the electrical wires have the ID number,it can match with specification , also it will be very easy for the further communication in the after sales service .
7.All spare parts have ID Number for offering the convenience in after sales service.
Technical parameter of Automatic Molecular Sieve Filling Machine
Max. frame size | 2000mm*2000mm (2500mm*2500mm) |
Min. frame size | 300mm*250mm |
Aluminum specifications | 5.5-26.5mm |
Air source | ≥0.65MPa |
Power supply and power consumption | AC220V 50Hz 1KW |
Molecular sieve diameter needed | 0.5-0.9 mm or 1.0 – 1.5mm |
Dimension | 1100mm*1100mm*3600mm |
