Glass Cutting Machine

LJCNC4228 CNC automatic glass cutting line is composed of automatic loading table, automatic cutting table and air-floated breaking table.

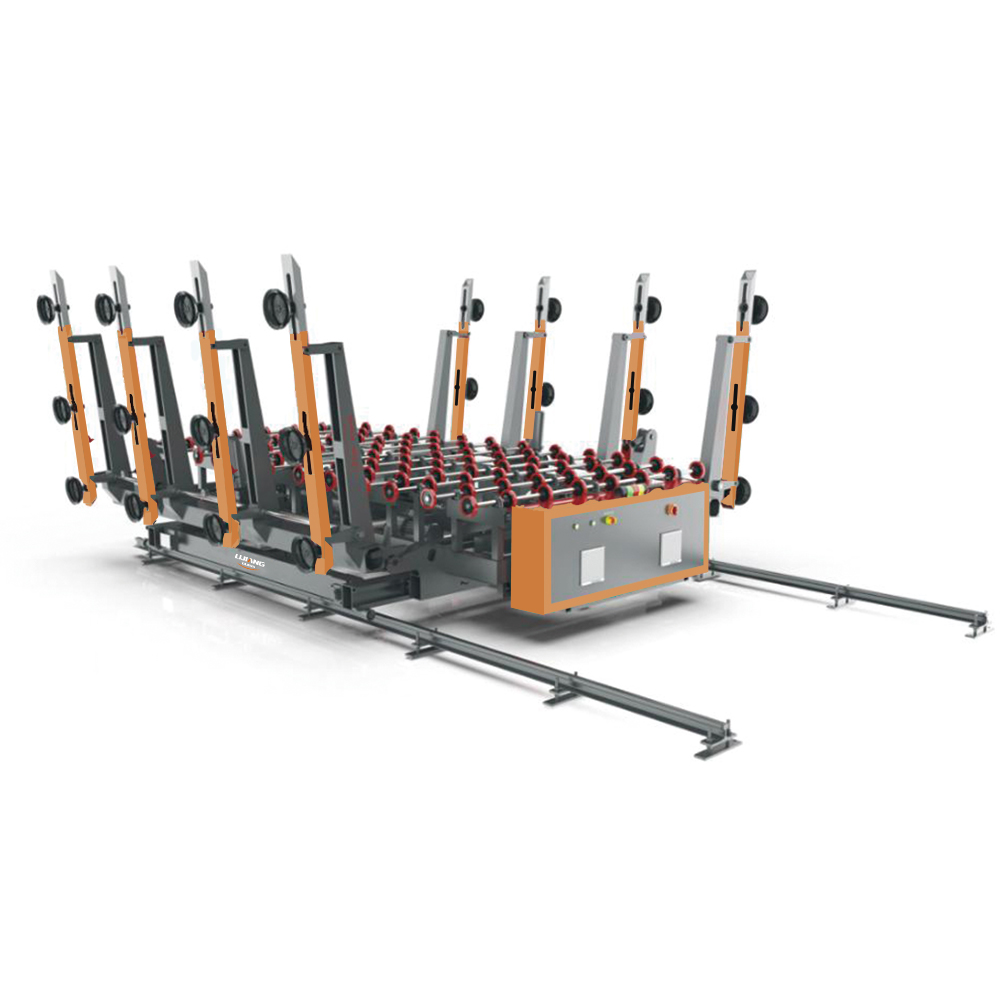

4228 Fully automatic glass loading table(6 Positions)

1.Basic working principle: It is mainly used for automatic glass loading. After putting the glass in the designated position and giving the signal of loading, the big arm turns up about 95 degrees through the overturning mechanism, and the whole machine starts to move forward. When the induction device on the small arm touches the glass, the whole machine stops walking and the glass is sucked by the suction cup through the vacuum system on the glass,small arm lifting motor lifts the glass upward and backward about 80 mm. The walking motor retreats and the big arm falls down. When the bing arm is in place, the suction cup under the glass begins to blow. When the small arm falls down, the glass falls on the conveyor wheel. Finally, the glass is conveyed to the cutting table by the conveyor wheel.

2.Equipment Composition: It is mainly composed of frame mechanism, turnover mechanism, sucker lifting mechanism, X-axis walking mechanism, Y-axis walking mechanism, conveying mechanism, vacuum and gas circuit control system and electrical control system.

3.Technical parameter：

1)、Sheet size: Min size: 1500 *1200mm (Single Side loading)

2)、Max loading size: 4200 x 2800 mm

3)、Glass sheet thickness: 3 ~ 19mm

4)、Working absorption depth: 700 mm

5)、X-axis walking speed: 5-25m/min (adjustable)

6)、Y-axis walking speed: 8-12 m/min (adjustable)

7)、Conveying speed: 5-25m/min (adjustable)

8)、Number of flip arms: 8 arms (double side loading)

9)、Number of single arm suckers: three

10)、Loading type:Double side loading(1+1)

11)、Working cycle: 45S (15S for each additional position)

12)、Installation power supply: AC380V/50HZ (special circumstances can be adjusted according to customer requirements)

13)、Installation total power: 5-10 kw

14)、Compressed air: 0.6-0.8 Mpa;

15)、Vacuum: -50-99 Kpa (adjustable according to glass thickness)

16)、Working table height: 900 + 20mm

17)、Machine size: 4650 x 2980 x 900mm

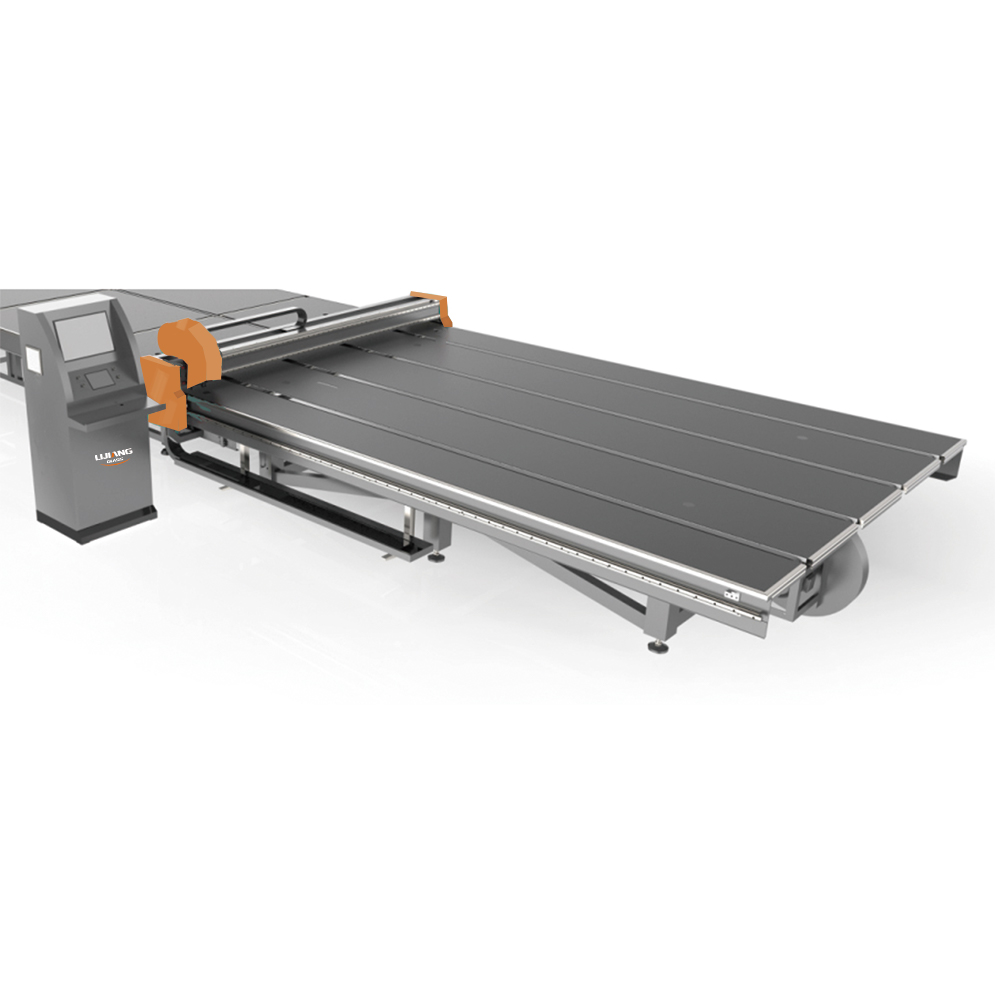

4228 Fully automatic glass cutting machine

1.Basic principles：    Its working principle is to convey the cut glass by conveying belt to worktable, automatically input the position of glass through photoelectric scanning system, and then the cutting head with diamond wheel on the cutter holder moves along X and Y directions respectively by program control,cut the sheet. CNC motion controller is used in the control part of the machine, and advanced AC servo motor is used in the drive part. 2.Equipment Composition： Automatic Cutting table: It consists of chassis mechanism, beam mechanism, worktable mechanism, cutting knife mechanism, conveying mechanism, photoelectric scanning positioning mechanism and electrical control system.

3.Technical parameter； 1)、Max size:4200×2800mm 2)、Thickness:3～19mm 3)、Cutting accuracy:±0.2 4)、Cutting accuracy of special-shaped glass:±0.25 5)、Cutting speed:0-200m/min 6)、Conveying speed:0-25m/min 7)、Machine size:5000×3300×1500mm 8)、Working table height:900mm±20mm 9)、Weight:2600kg 10)、Total power of equipment:5-8kw 11)film removing wheel specifications: 200* 76.2*20 12)film removal speed: 0-60m/min 13) rotation of film removing wheel: 2000-4000/min 14) dust absorption device: low-e metal film dust can be absorbed stroke of except film cylinder: 0-50mm (adjustable)

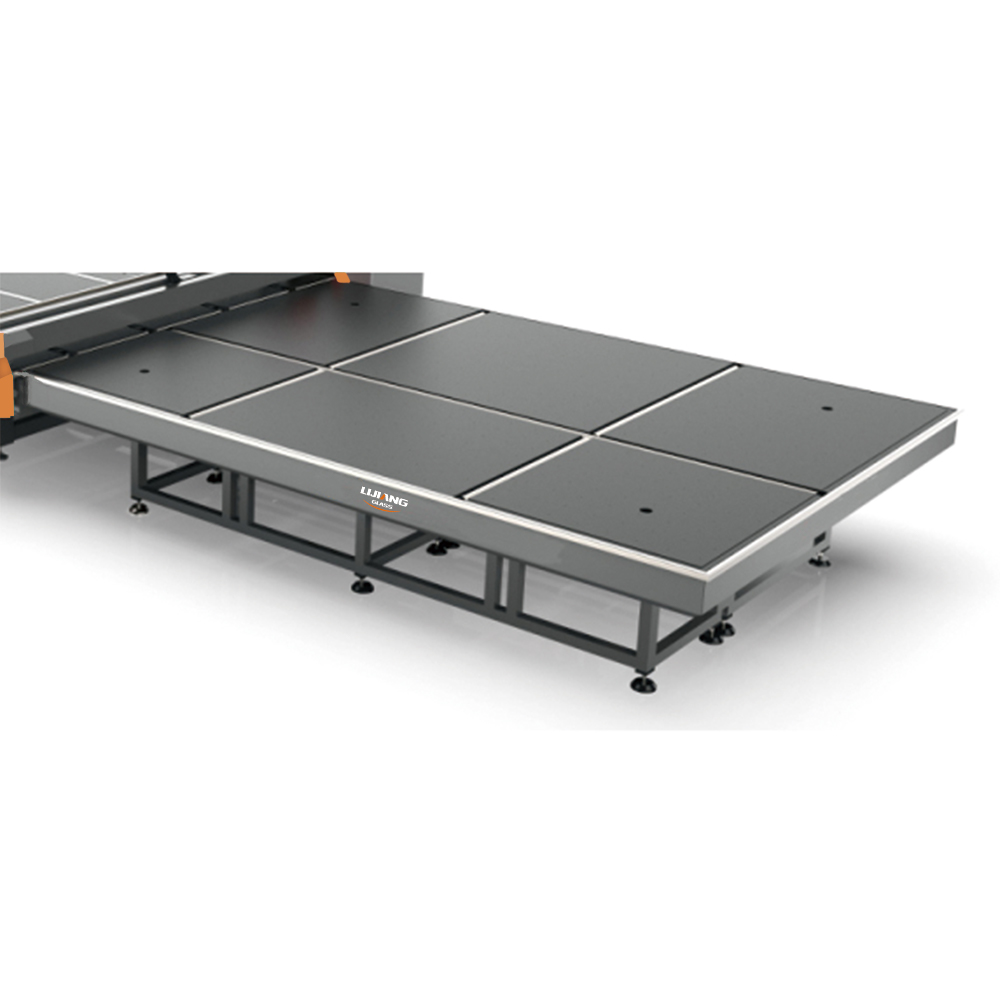

4228 Air-floated breaking table (2+1 type)

1.Equipment Composition：

It is mainly composed of four parts: frame mechanism, splitting mechanism, pneumatic control system and electrical control system.

2.Electrical part：

1)、Contactors: Renmin/Zhengtai

2)、Circuit Breaker: Renmin/Zhengtai

3)、Button: Renmin/Zhengtai

4)、Main solenoid valve: Airtac

5)、Other Pneumatic Components: Deke/Shengguan

6)、Fan:Liyuan

3.technical parameter；

1)、Breaking bar: 2+1 type

2)、Table Size: 4300 *3200mm

3)、Glass thickness:3-19mm

4)、Power: 4kw

5)、Table height: 900 + 20mm
