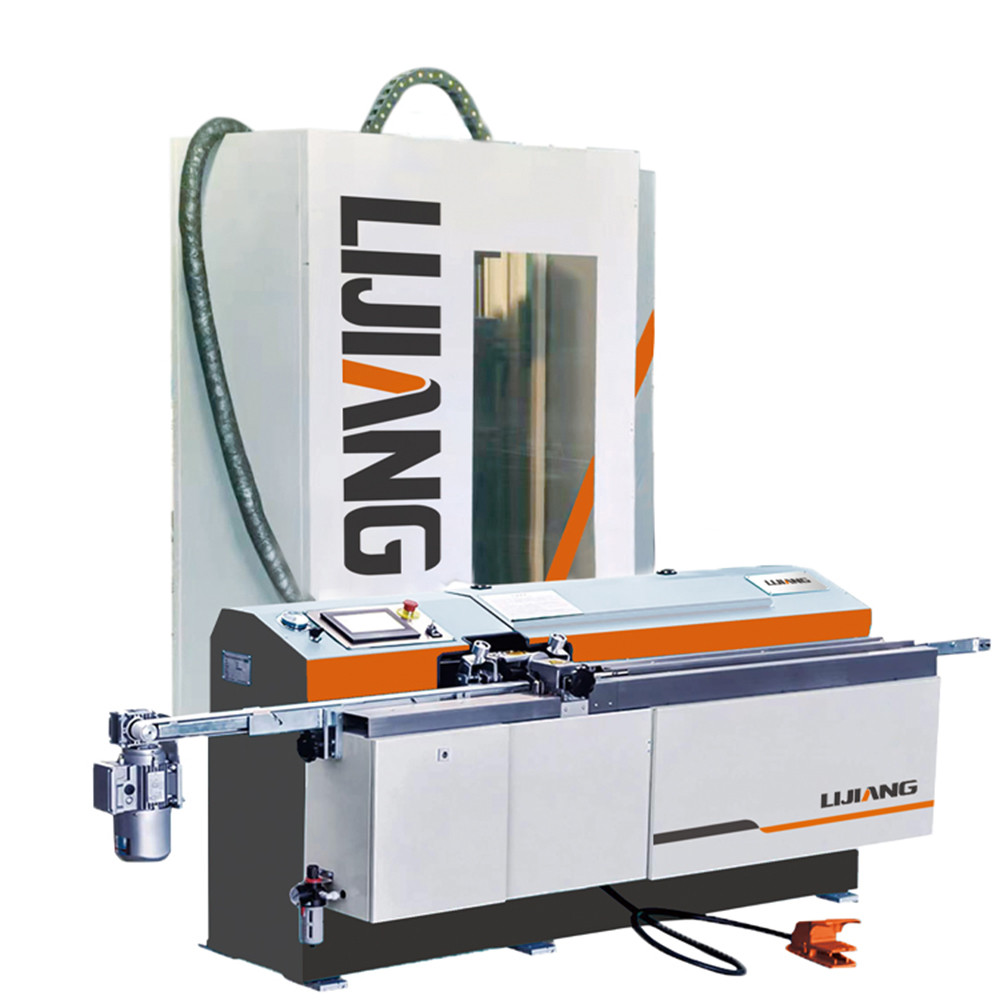

Automatic Butyl Extruder Machine
LJTB01
Automatic Butyl Extruder Machine is used to coat butyl rubber on both sides of insulating glass aluminum spacer strip.
Squeeze pressure | 10-18MPa |
Temperature | 110~140℃ |
Glue thickness | 0.3-0.5mm |
Glue width | 3.5mm |
Aluminum spacer width | 6A - 27A |
Speed | 5-47m/min |
Diameter of butyl cylinder | 200mm |
Air supply | 0.4m³/min |
Air pressure | ≥0.6MPa |
Total power | 380V, 5.7KW,50HZ |
Dimension | 2800×700×900mm(L×W×H） |
weight | 650kg |
• Big glue barrel, 200L. (Option)
