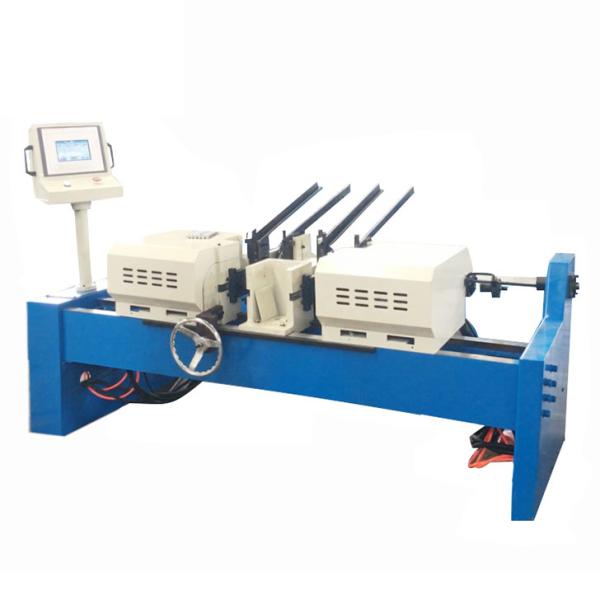

Automactic Single End Chamfering Machine
CJ-50 Double Row Chamfering Machine
The CJ-50 Double Row Chamfering Machine:
Ideal for Tube and Bar Single End Chamfering up to 50mm OD
Enhance your metalworking capabilities with the CJ-50 Chamfering Machine, expertly designed to handle tube and bar chamfering with an impressive capacity of up to 50mm OD. This robust machine is perfect for efficient single tube end chamfering, and also caters to solid bars, offering versatility and precision in your metalworking projects.
Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Precise Centering & Outer Chamfer and Drilling for Solid Bars"
Paremeters
Model | CJ-50 |
Type | Hydraulic Drive |
Pipe Diameter | 10-50mm |
Bar Diameter | 6-25mm |
Work Length | Standard material 100-400mm (2pcs); short material 70-400mm (2pcs) |
Work accuracy | ±0.1mm |
Work Speed | 3-5s/pcs |
Machine Motor | 2.2kw |
Work Pressure | MPA 6-8KG |
Weight | 900kg |
Dimension | 260*100*120cm |
Suit Material | Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc |
