Arbitrary Angle Cutting Center

LJG1-CNC-500X6500 is a new generation of CNC cutting center developed by JMD Company. It is mainly designed to cut thermal break aluminum doors and window profiles such as frames, sashes and mullions. It can also be used to cut some industrial aluminum profiles. The cutting host is equipped with a single saw blade which rotates left and right alternately to complete the profile cutting. The saw blade is controlled by the cam roller rotating platform mechanism which is driven by the servo motor . The saw blade cutting lifting mechanism adopts a 45°sawing swing arm structure.

Processing parameters

Cutting width: 150mm

Cutting height: 150mm

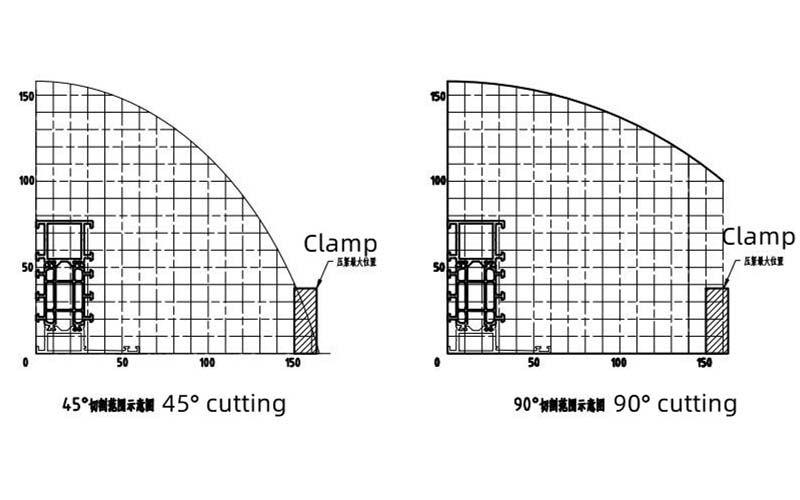

Schematic diagram of cutting range:

Cutting angle: any angle between ± 45 °

Cutting length: 300~4600mm(Maximum to 6500mm)

Cutting length tolerance: ±0.1mm/1000mm

Cutting angle tolerance: ±0.1°

Raw material length required: 3000mm~6500mm

Feeding stroke of manipulator: 7300mm

Machine Parameters

Power supply: three-phase, four-wire, 380V 50Hz

Cutting spindle motor power: 3.0kW

Cutting spindle motor rotation speed: 2860r/min

Feeding speed: 0~70m/min

Blade feeding speed: 0~10m/min

Cutting efficiency: average 13s/piece

Blade specification: 500x4x3.6x30x120

Working air pressure: 0.5MPa~0.8MPa

Air consumption: 120L/min

Total power: 12.3kW+3.7kW(Industrial dust collector)

Total weight: 5.7T

Overall size (LxWxH): 13.8mx2mx4.2m
