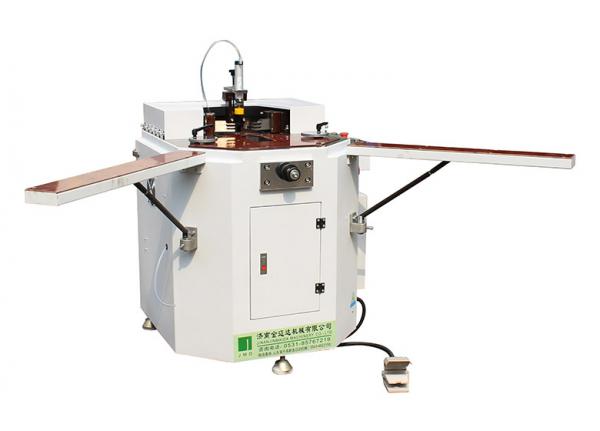

Aluminum Door & Window Light Duty Crimping Machine

LJZJA-90

Aluminum Door & Window Light Duty Crimping Machine
Aluminum Door & Window Light Duty Crimping Machine
Aluminum Door & Window Light Duty Crimping Machine
Aluminum Door & Window Light Duty Crimping Machine
Get Quote

1. Used for jointing the corners of aluminum windows & doors at 90°

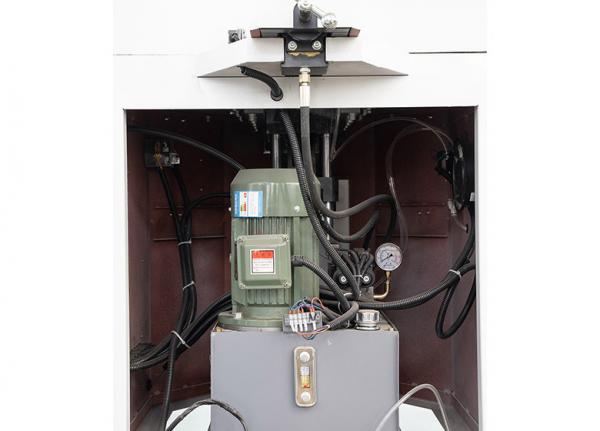

2. Crimping blade driven by hydraulic system with high stability
3. Safe & easy to operate and maintain
4. The inner positioning device is beneath the worktable when the machine is not working. This design makes it convenient to load and unload the window frames and makes this machine suitable for large-size windows and doors.

Power supply

380V/3Phase/50Hz

Input power

1.1kW

Air pressure

0.5~0.8Mpa

Air consumption

2L/min

Rated oil pressure

10Mpa

Oil tank volume

17.5L

Profile processing width

120mm

Cylinder stroke

0~68mm

Overall dimension

830*1000*1200mm

Weight

400Kg
