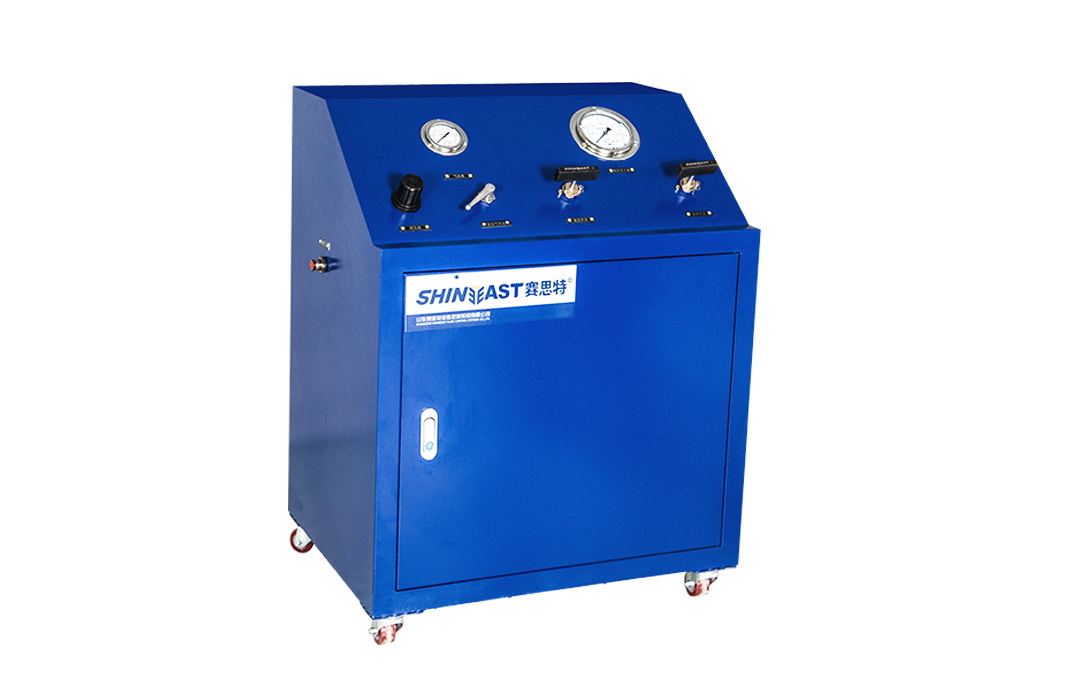

Air Leak Test Machine for Gas Cylinder
2. System configuration:
The air leak test machine mainly consists of high pressure air compressor, water tank, control cabinet, storage cylinder group.
Technical parameters of QM-2 Air leak test machine for gas cylinder:
Type: QM-2
Testing pressure: 200 Bar
Working efficiency:5-10 pieces gas cylinder per hour
Drive air pressure: 0.6-0.8Mpa
Supply electricity: 380V/50Hz
No. of stations: Two stations
Air displacement from high pressure: 1.5N M3/min
Cooling type: Wind cooling
