Air Driven Liquid Pump for High Pressure Testing
M series

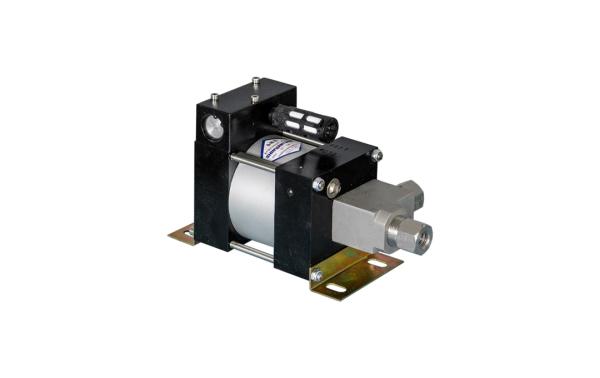

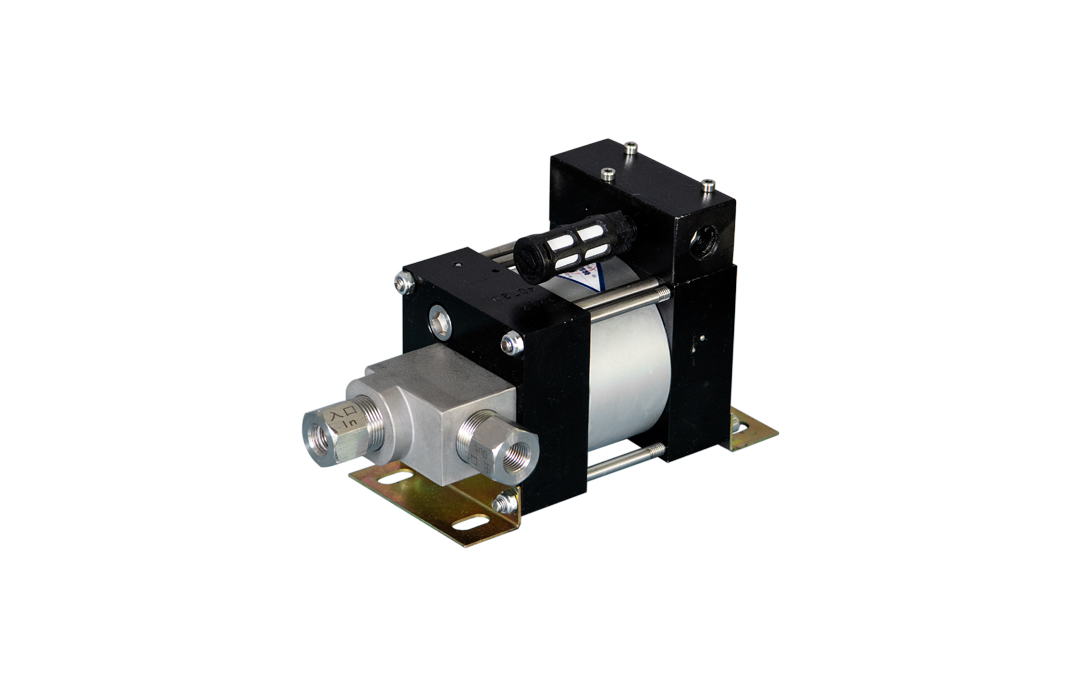

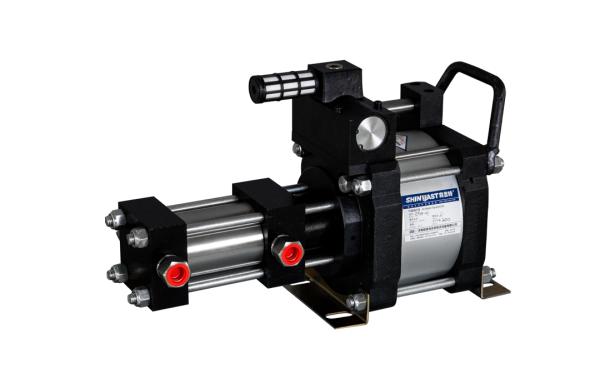

SHINEEAST M Series High Pressure pumps are single acting, single air drive head pumps,
with diameter of drive plunger of 80mm.

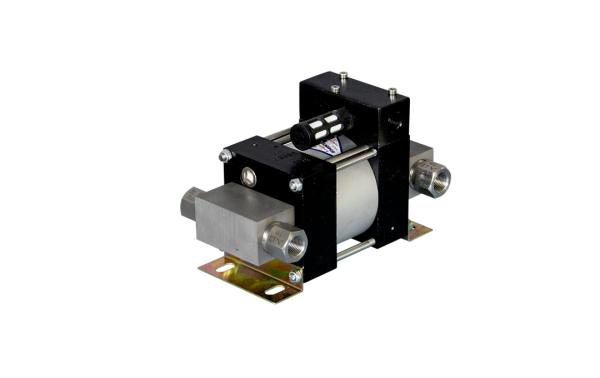

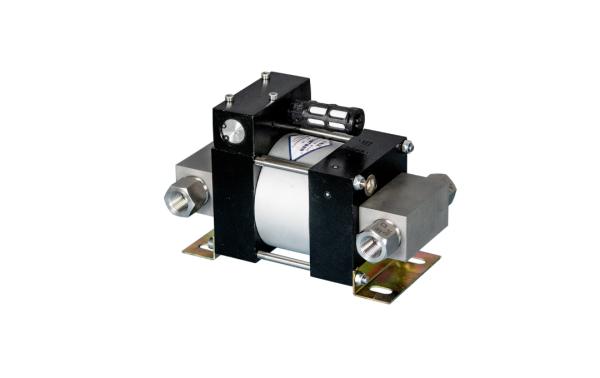

SHINEEAST MD Series High Pressure pumps are double acting, single air drive head pumps,
with diameter of drive plunger of 80mm.
They are compact, lightweight, feature rugged construction and are available in several pressure ratios.
Air Driven Liquid Pump-M Series
Technical Data:
TYPE | Pressure Ratio | MAX Outlet Pressure(bar)* |
Air drive | Connection Inlet A | Connection Outlet B | MAX Flow (L/min)** |
M1 | 1:1 | 8 | PT3/8 | NPT1/2 | NPT3/8 | 14.2 |
M4 | 4:1 | 32 | PT3/8 | NPT1 | NPT1/2 | 15.07 |
M10 | 10:1 | 80 | PT3/8 | NPT3/4 | NPT1/2 | 7.15 |
M16 | 16:1 | 128 | PT3/8 | NPT1/2 | NPT1/2 | 4.59 |
M30 | 30:1 | 240 | PT3/8 | NPT1/2 | NPT3/8 | 2.53 |
M44 | 44:1 | 352 | PT3/8 | NPT3/8 | NPT3/8 | 1.41 |
M64 | 64:1 | 512 | PT3/8 | NPT3/8 | NPT3/8 | 0.95 |
M100 | 100:1 | 800 | PT3/8 | NPT3/8 | NPT3/8 | 0.64 |
M170 | 170:1 | 1360 | PT3/8 | NPT3/8 | M14X1.5 | 0.37 |
*Max. outlet pressure at an air drive of 8 bar/116 PSI
**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
Air Driven Liquid Pump-MD Series
TYPE | Pressure Ratio | MAX Outlet Pressure(bar)* |
Air drive | Connection Inlet A | Connection Outlet B | MAX Flow (L/min)** |
MD30 | 30:1 | 240 | PT3/8 | NPT1/2 | NPT3/8 | 3.23 |
MD44 | 44:1 | 352 | PT3/8 | NPT3/8 | NPT3/8 | 2.37 |
MD64 | 64:1 | 512 | PT3/8 | NPT3/8 | NPT3/8 | 1.65 |
MD100 | 100:1 | 800 | PT3/8 | NPT3/8 | NPT3/8 | 1.01 |
MD170 | 170:1 | 1360 | PT3/8 | NPT3/8 | M14X1.5 | 0.59 |
Drive air pressure is no more than 8 bar.
*Max. outlet pressure at an air drive of 8 bar/116 PSI
**Approximate flow at an air drive of 6 bar/87 PSI and an out pressure of 0 bar/PSI
