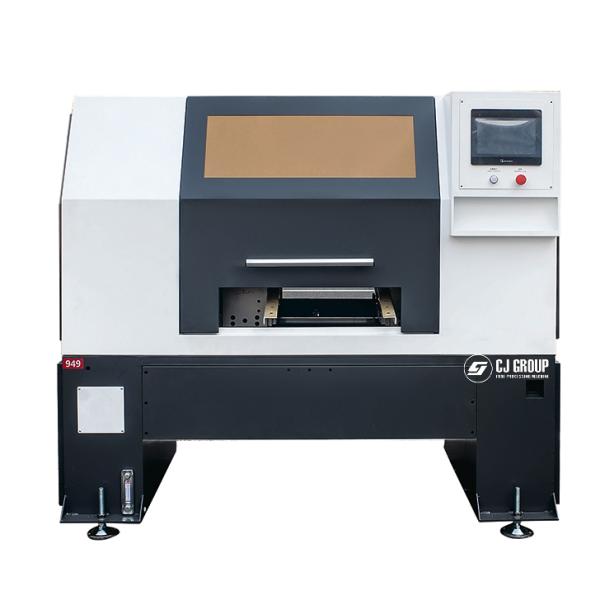

5 Axis CNC Chamfering Machine
CJ-60/90 CNC Chamfering Machine
CJ-60/90CNC 5 Axis Chamfering Machine: Precision Chamfering for Short & Length Tubes And Bars
Experience the ultimate in precision with the Chamfering Machine, specifically engineered for chamfering short-length tubes. Ideal for tubes with lengths between 80 mm and 1000 mm and an outer diameter of up to 90 mm, this chamfering machine is a powerhouse of efficiency and accuracy, tailored to meet the demands of businesses focused on high-precision tube or bar processing.
Features:
Ensures Clean Surfaces for Tube Welding
Accurate Angular Chamfers for Enhanced Fitting & Assembly
Comprehensive I/O Chamfering & Facing Or Boring for Precision
Smooth Radius Chamfering for Improved Finishing
Parameters
Model | CJ-60CNC | CJ-90CNC |
Pipe Diameter | 15-60mm | 20-90mm |
Work Length | 80-500mm/1000mm(custom) | 80-500mm/1000mm(custom) |
Work accuracy | ±0.05mm | ±0.05mm |
Verticality | 0.1mm | 0.1mm |
Concentricity | 0.05mm | 0.05mm |
Work Speed | 3-6s/pcs | 3-6s/pcs |
| Servo Motor | 0.75kw | 1kw |
Main Motor | 2.2kw | 3kw |
Work Pressure | MPA 6-8KG | MPA 6-8KG |
Weight | 1200kg | 1400kg |
Dimension | 1910*1350*1920mm | |
Material | Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc | |
Shape Available | Round, Square, Hex, Bent Shape etc | |
Workpiece Available | Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc | |
