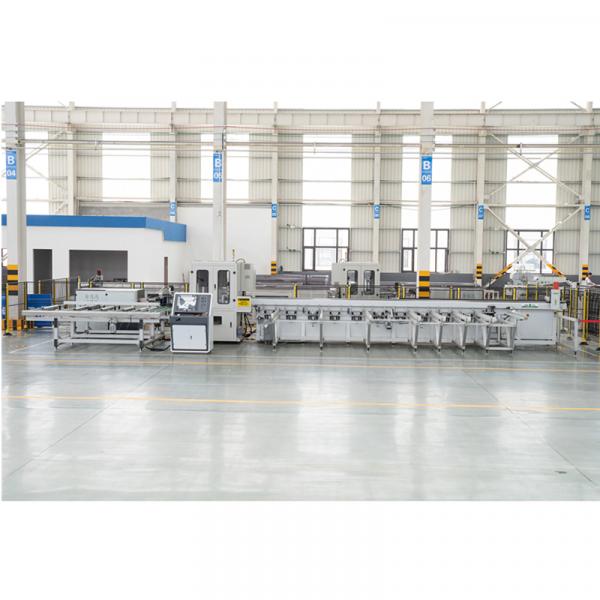

45 Degree CNC Cutting Center for Aluminum Doors and Windows

LJG2S-500*6500

45 Degree CNC Cutting Center for Aluminum Doors and Windows
Get Quote

1.Specially designed to automatically cut aluminum window profiles at 45degree, with high efficiency.
2.Cutting stroke can be adjustable according to profile’s size to improve the cutting efficiency.
3.The manipulator speed is CNC controlled. The control system can save the profiles’ data.
4.Equipped with Schneider CNC system and optimization software for windows.
5.Minimize the waste of aluminum profile, saving costs.
6.Pulse blowback chip collector, recovers the cutting chips with low noise
7.The insolation transformer make it very safe to use the machine
8.Blade-driven motor: SEIMEC
9.CNC system: Schneider
10.Low-voltage electric components: Schneider
11.Pneumatic components: AirTAC
12.Cables & wires: YiChu
13.Gear & rack: YYC
14.Linear guide rail: HIWIN
15.Guide screw: TBI
16.Blade: KANEFUSA

Aluminium Profile Cutting Machine, CNC Cutting Center, CNC Cutting Machine For Metal & Wood, CNC Profile Cutting & Machining Center

CNC stands for Computer Numerical Control, which is a type of technology that creates products through subtractive manufacturing. Put simply, CNC is a large and diverse family of machines that are mostly controlled by a computer program to perform tasks that otherwise would have been done manually. Another common feature of all CNC machines is that they can move their tools in at least two different directions. The directions are called axes and the more of those a machine has, the more complicated it is. There are three possible linear axes: X, Y and Z, and three additional rotary axes: A, B and C.

What is CNC Cutting Center?

45 Degree aluminum profile cutting machine for aluminum doors and windows

Power supply

380V/3Phase/50Hz

Total power

15kW

Working air pressure

0.5~0.8MPa

Blade specification

500x4.4x3.6x30x120

Cutting angle

45°

Cutting length

150mm~6200mm

Cutting range

150mm x 125mm(H x W)

Cutting length tolerance

±0.1mm

Cutting angle tolerance

±0.1°

Repeat position accuracy

±0.05mm

Cutting surface roughness

Ra12.5μm

Cutting surface flatness

≤0.1mm

Air consumption

120L/min

Feeding speed

0~60m/min

Discharge speed

0~50m/min

Blade-driven motor rotating speed

2860rpm

Blade feeding speed

0~15m/min

Output

15s/ p c

Total weight

5000Kg

Overall size

13.2m x 3.8m x 2.1m(L x W x H)
