3 Axis CNC Chamfering Machine

CJ-60CNC Length Measuring Chamfer

3 Axis CNC Chamfering Machine
Get Quote

Precision Chamfering and Measuring Solution for Double-Ended Tubes and Solid Bars Experience advanced precision with our OD 60mm Double Tube End Chamfering and Measuring system. Designed for high-efficiency tube processing, this system is capable of simultaneously chamfering both ends of tubes up to 1000 mm in length, ensuring accuracy within a tight tolerance of +/- 0.03 mm.
Our innovative 3-Axial series integrates chamfering and precise length measurement, streamlining your tube finishing processes. The optional BTM (Bundle Loading Magazine) further enhances productivity by automating tube loading, feeding, chamfering, and measuring operations.
Equipped with a relative length measuring system, the machine can be programmed to halt production if multiple pieces deviate from the specified length tolerance, ensuring consistent quality control.
Ideal for creating clean, even chamfers on both ends of tubes, our system offers versatile chamfering options, including internal and external (I/O) chamfers and face chamfers, as well as radius (round) chamfers. It’s also perfectly suited for the external chamfering of solid bars, providing a comprehensive solution for your tube and bar finishing needs.

Parameters

Model

CJ-60CNC

CJ-90CNC

Pipe Diameter

8-60mm

20-90mm

Work Length

200-1000mm(custom)

200-1000mm(custom)

Work accuracy

±0.05mm

±0.05mm

Verticality

0.1mm

0.1mm

Concentricity

0.05mm

0.05mm

Work Speed

3-6s/pcs

3-6s/pcs

Servo Motor

0.75kw

1.0kw
Main Motor2.2kw3.0kw

Work Pressure

MPA 6-8KG

MPA 6-8KG

Weight

1300kg

1500kg

Dimension

2850*1500*1900mm

Material

Steel,Iron, Stainless Steel, Aluminum, Copper,Plastic,Nylon etc

Shape Available

Round, Square, Hex, Bent Shape etc

Workpiece Available

Pipe, Tube, Round Bar,Threaded Rod, Bolt, Nut etc


Related Products

Automatic AC Spot Welder Machine

CJ-Series Spot Welding Machine

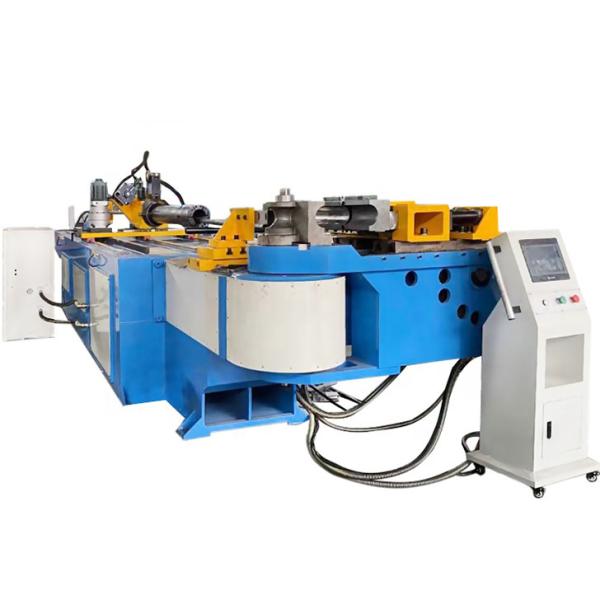

4A-2S Pipe Bending Machines

CJ-38CNC Mandrel Tube Bender

Pipe Single Head Chamfering Machine

CJ-120 Tube End Chamfering Machine

Hex Bolt Chamfering Machine

CJ-150 Auto Chamfering Machine

Lifting Type Auto Chamfering Machine

CJ-120 Pipe End Chamfer Machine

Heavy Duty Circular Saw Machine

CJ-150 Circular Saws

NC Tube Arc Notching Machine

CJ-80 Tube Notcher

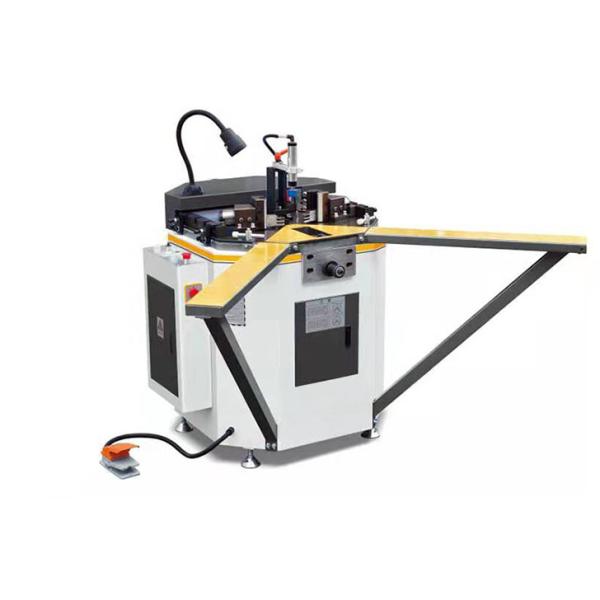

Single Head Corner Combining Machine
