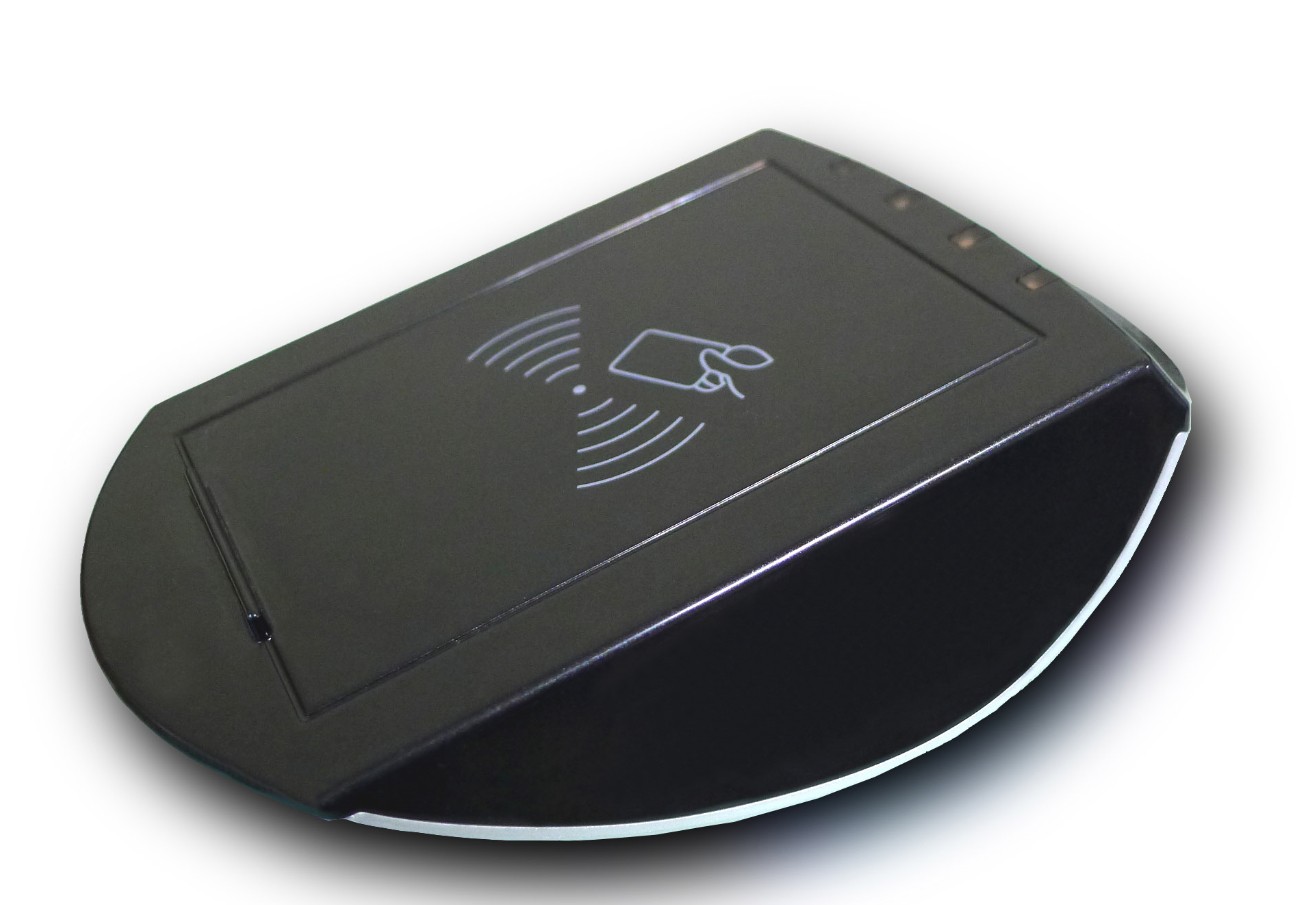

13.56MHz RFID Contactless IC card reader Interface: Ethernet RJ45 - MR730
13.56MHz RFID Contactless IC card reader Interface: Ethernet RJ45 For Sale, Most Competitive Price, Fast Delivery, Custom Service, Wholesale 13.56MHz RFID Contactless IC card reader Interface: Ethernet RJ45, Made in China, High Quality Products!, China RFID Reader, RFID Module Supplier, Manufacturer.
MR730 series contactless smart reader is the Ethernet interface desktop reader based on NXP PCD or compatible PCD. It doesn& acute;t have display. The reader supports series IC cards according to ISO14443 & ISO15693; various contactless IC card under international standard; especially the contactless CPU cards under ISO14443-4. Meanwhile the reader is available to pass EMV2000 and PBOC 2.0 and be authenticated by many laboratories--Visa Wave & Pay Pass (by FIME) and the Bank Card Test Center. The reader embeds SAM card slot. We do the optimization for application of domestic payment system and so it can support fully SAM card under 9600bps & 38400bps.
Qualifications:
PCD: NXP RC500, RC531, RC632, RC400; FM1722
Working frequency: 13.56MHz
RF standard: ISO14443A, ISO14443B, ISO15693
Operating distance: 80mm (Mifare One, typical distance)
SAM card slot: 1 slot, supported ISO7816 T=0, supported 9600bps&38400bps
Interface: Ethernet RJ45
Baud rate: 9600 ~ 115200 BPS
Power supply: DC5V
Power consumption: 1.5W
Dimension: 141mm×100mm×31mm
Weight: about 100g
Operating temperature: -25 ~ +85 ℃ (-77 ~ +185°F)
Storage temperature: -40 ~ +125 ℃ (-104 ~ +257°F)
